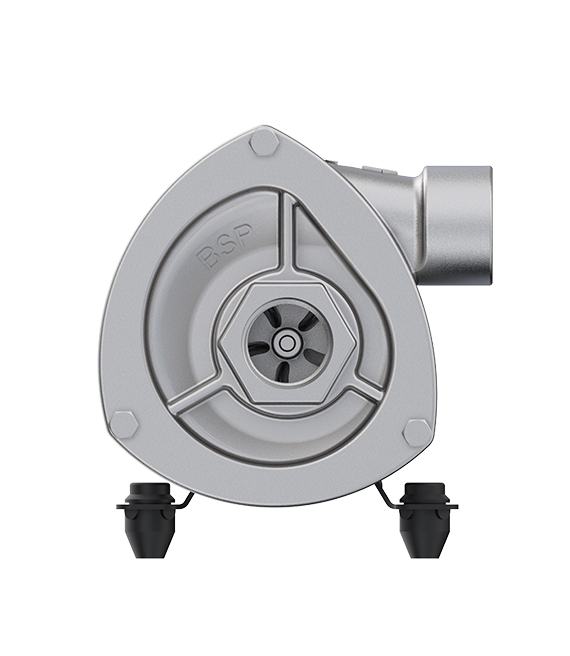

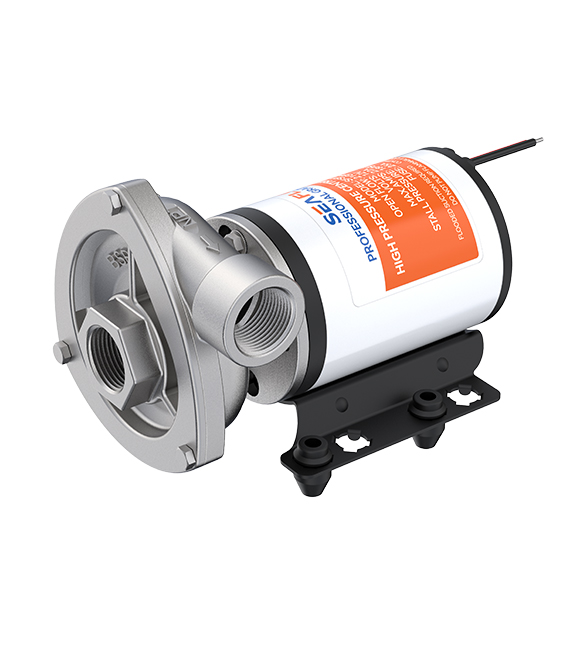

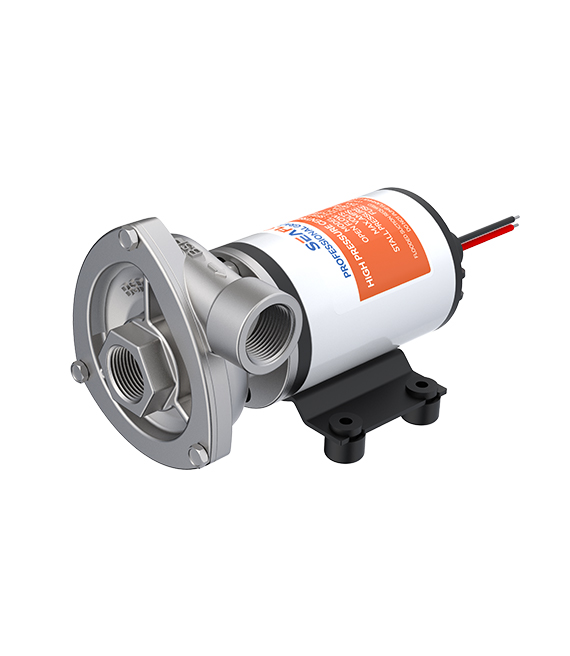

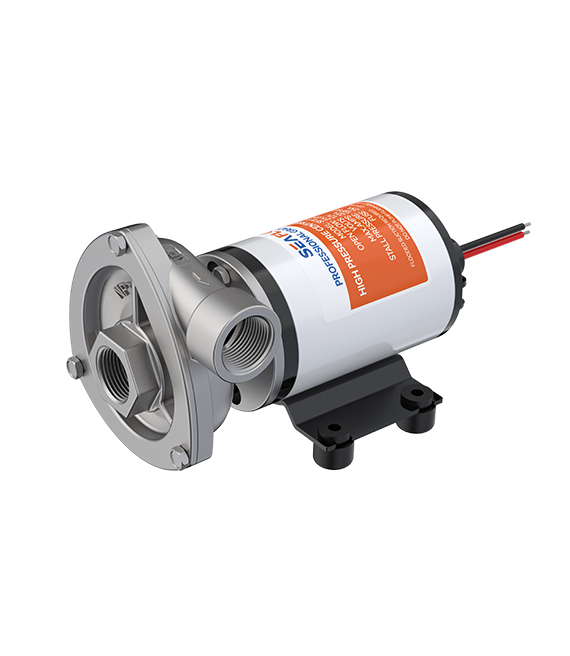

High pressure water pump, centifugal water pump
Voltage：12V/24V
Max Draw：22A/12A
Max Flow：21GPM (80LPM)
Max Head：12.4m (40ft)
Ports：3/4" NPT; 3/4"BSP
This heavy-duty 316L stainless steel centrifugal pump is designed for liquid circulation and transfer applications. It is equipped with a long-life DC motor and features high flow capacity and high-temperature resistance. It is suitable for the transfer of seawater, fresh water, antifreeze, mild chemicals, and bilge water.
FEATURES & BENEFITS
Head unit rotates in 90° segments giving 4 port options.

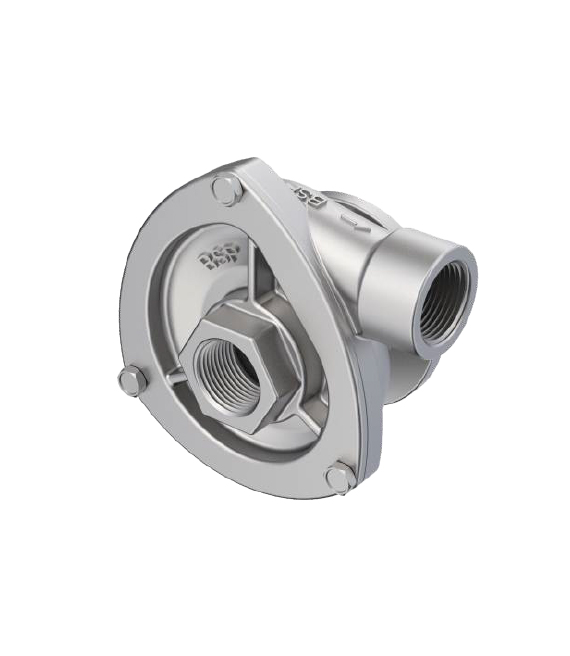

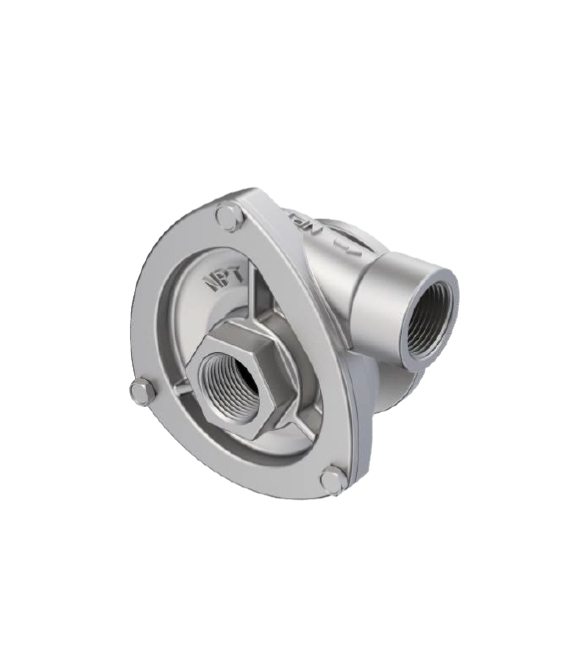

316L stainless steel pump head, heavy-duty and durable design.
Connections for 3/4" BSP/NPT.
Meet ISO 8846 Marine (Ignition Protection).
Meet ISO 8849 Marine (Bilge Pump Standard)
Long-life DC motor with a lifespan of 2,500 hours.
High flow rate with a maximum capacity of 21 GPM (80 LPM).
High temperature resistance: fluid temperature range from 4°C (39°F) mini to 95°C (203°F) max.
Anti-clogging impeller design, allowing small debris to pass through (soft debris < 5mm, hard particles < 1mm).
Low noise operation, with sound levels < 55 dB.
Continuously rated.
Resistant to general chemicals and non-polar solvents.

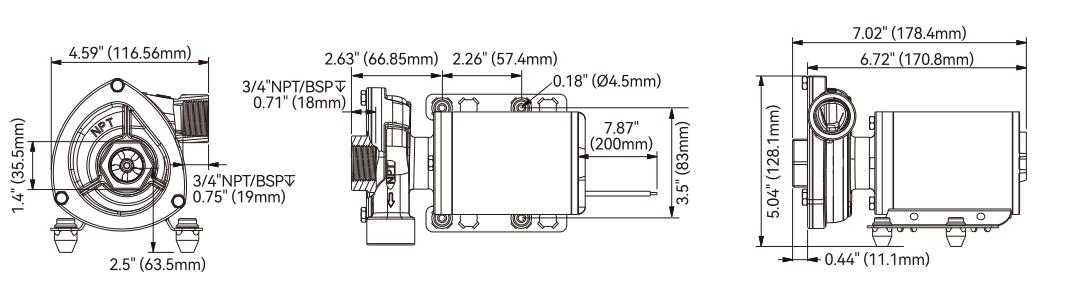

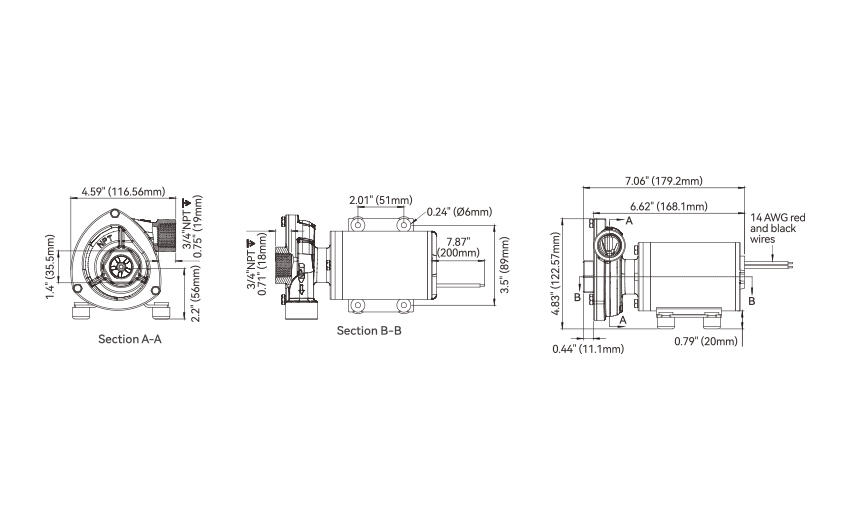

DIMENSION DRAWING
STANDARD CONFIGURATIONS
| Model | Voltage | Max Draw | Open Flow | Stall Pressure | Max Head | Fuse | Ports |
| SFSP1-G210-07N | 12V | 22A | 21/80 | 18PSI/1.24Bar | 12.4m/40ft | 25A | 3/4″ NPT |
| SFSP2-G210-07N | 24V | 12A | 21/80 | 18PSI/1.24Bar | 12.4m/40ft | 15A | 3/4″ NPT |
| SFSP1-G210-07B | 12V | 22A | 21/80 | 18PSI/1.24Bar | 12.4m/40ft | 25A | 3/4″ BSP |
| SFSP2-G210-07N | 24V | 12A | 21/80 | 18PSI/1.24Bar | 12.4m/40ft | 15A | 3/4″ BSP |
