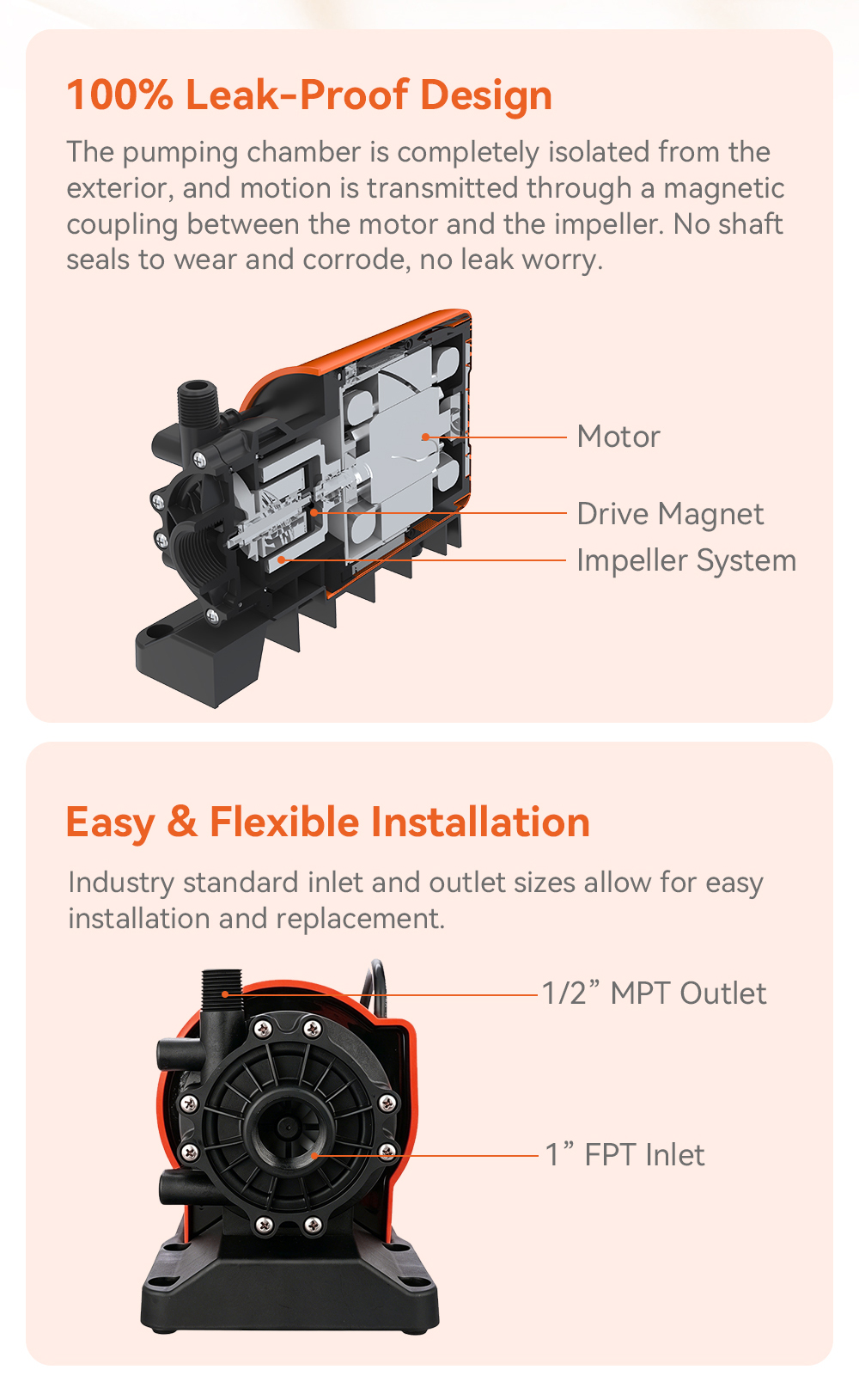

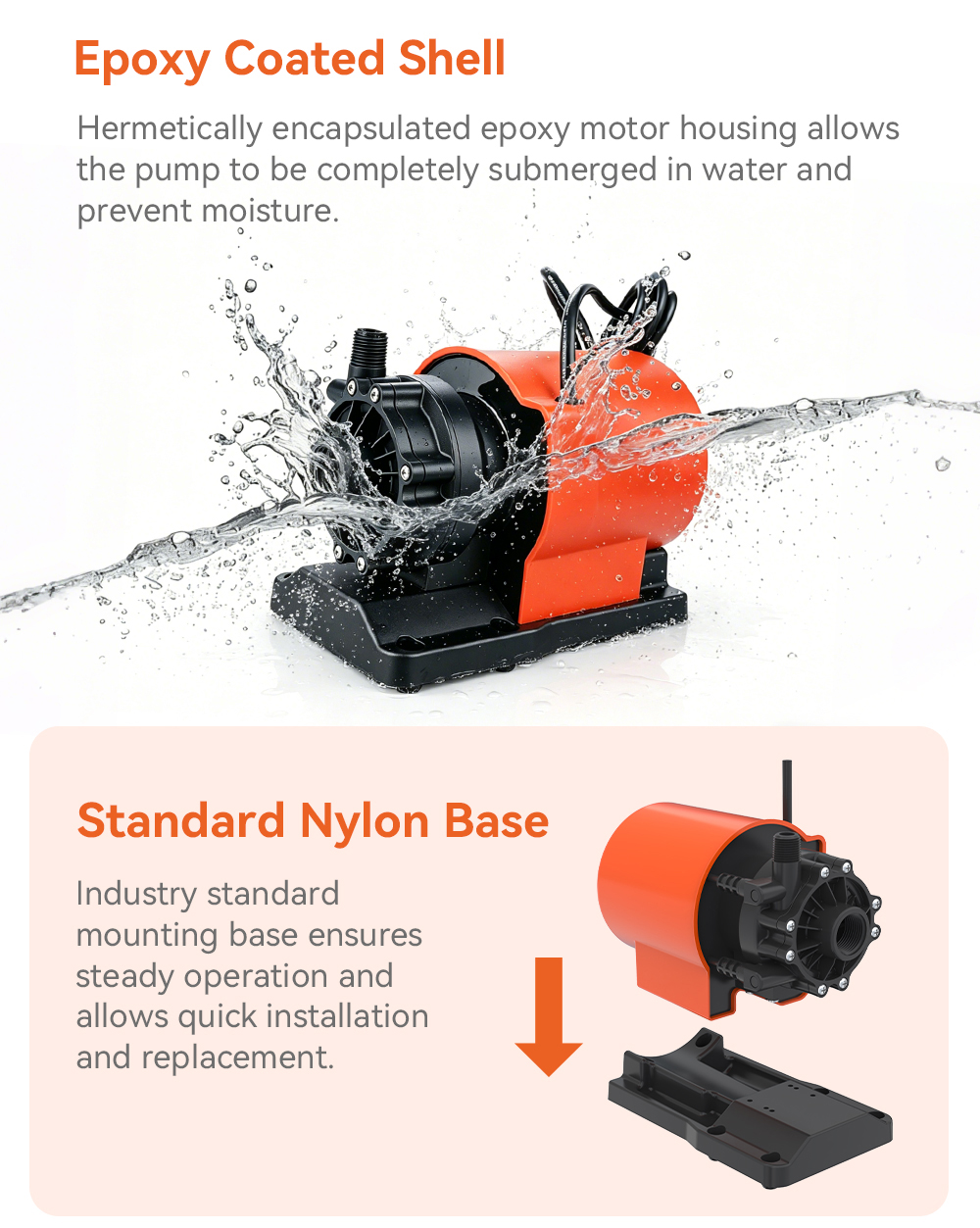

The SEAFLO Magnetic Circulation Pump is a centrifugal magnetic drive pump, eliminating the need for a shaft seal. Pumps are serviceable with a screwdriver. The pump is can be immersed in water for a short time or in open air for complete moisture protection. It also can pump liquids with a specific gravity greater than water, have a higher viscosity.
MORE FEATURES & BENEFITS

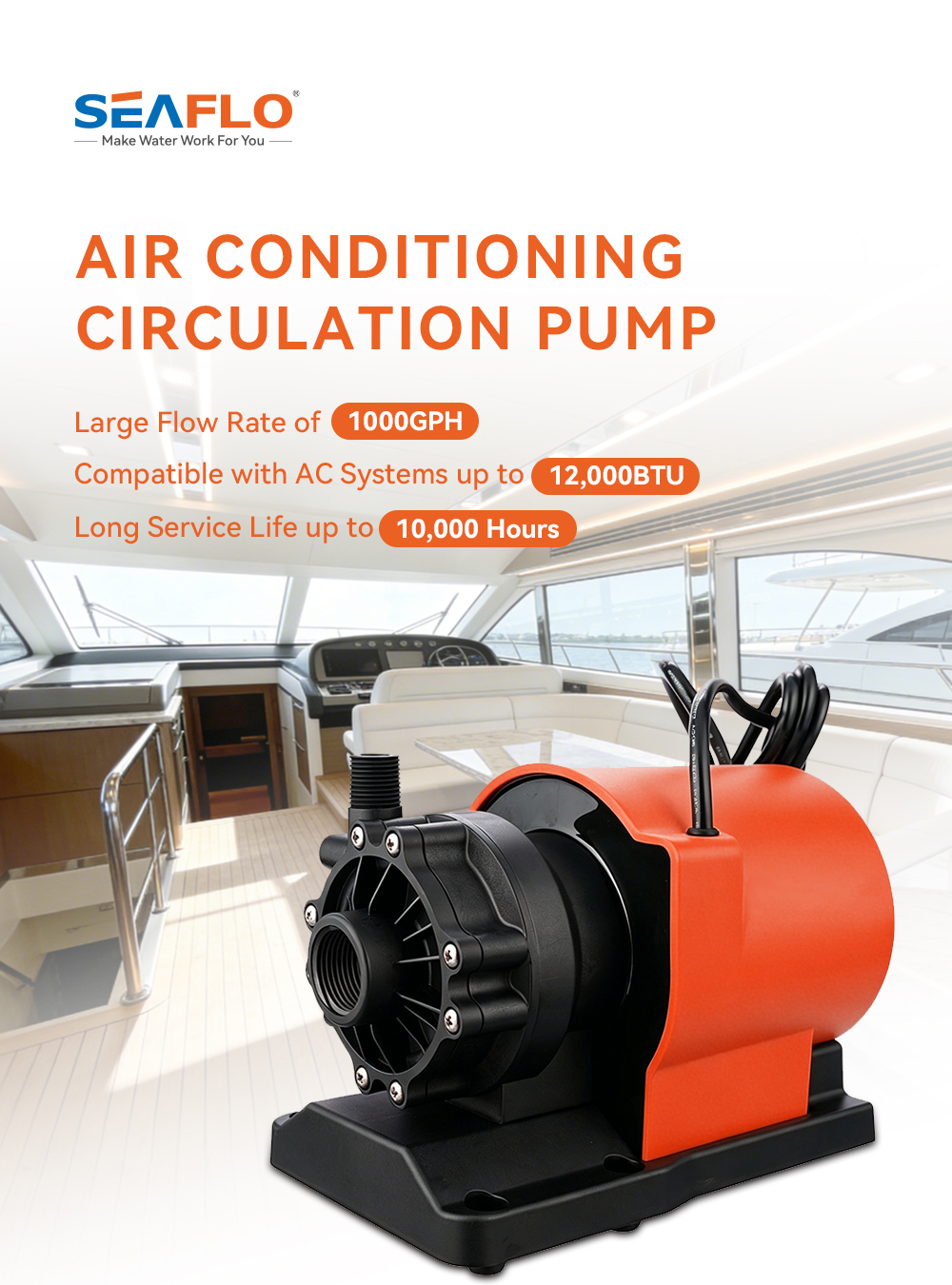

• For use with AC system up to 12,000 BTU
• More than 10,000 hours lifetime
• 16.7 GPM seawater circulation pump
• Run dry safe for normal workloads
• Continuous duty
• Replaces any brand marine air conditioning pump

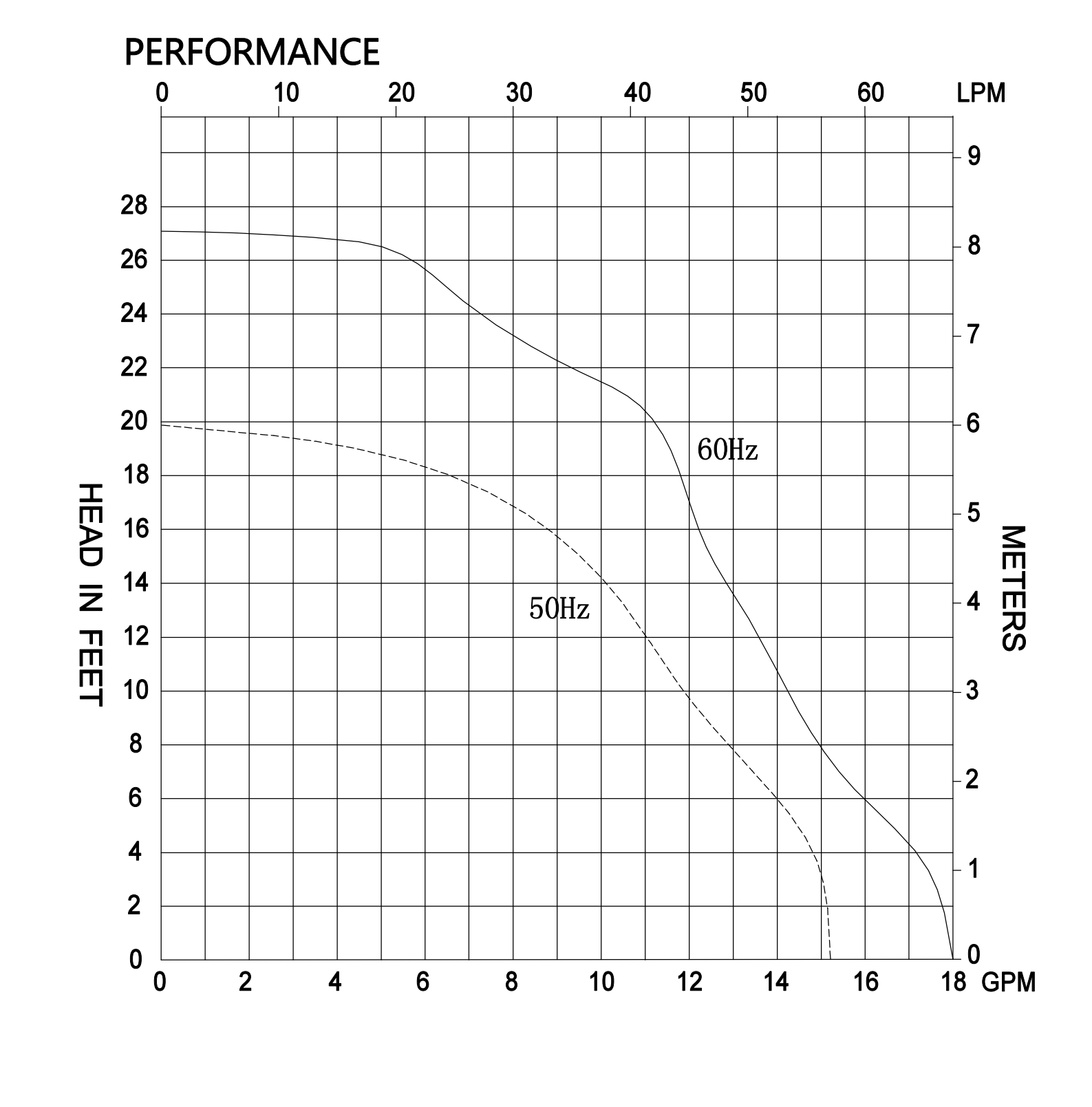

STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Flow Rate |
Frequency |
Head |
Power |
Amps Draw |
| SFCPA1-G1000-01 | 115 V | 16.67 GPM | 60 Hz | 26.9 ft / 11.65 psi | 200 W | 2.0 A |
|
63.1 LPM |
50 Hz |
7.92 m |
130 W |
1.4 A |
||
| SFCPA2-G1000-01 | 230 V |
16.67 GPM |
60 Hz |
26.9 ft / 11.65 psi |
200 W | 1.0 A |
|
63.1 LPM |
50 Hz |
7.92 m |
130 W |
0.7 A |
SHIPPING INFORMATION
|
Unit Weight |
17.08 lbs（7.75 kg） |
|
Selling Unit Size (L x W x H) |
11.4"x 7.87 "x 8.66" (29*20*22 cm) |
|
Selling Unit Weight |
19 lbs (8.6kg) |
|
Master Carton Size (L x W x H) |
16.53"x 12.20 "x 9.84" (42*31*25 cm) |
|
Master Carton Qty |
2 pcs |
|
Master Carton Weight |
37.5 lbs (17 kg) |
|
Master Carton Volume |
0.032 m³ |
