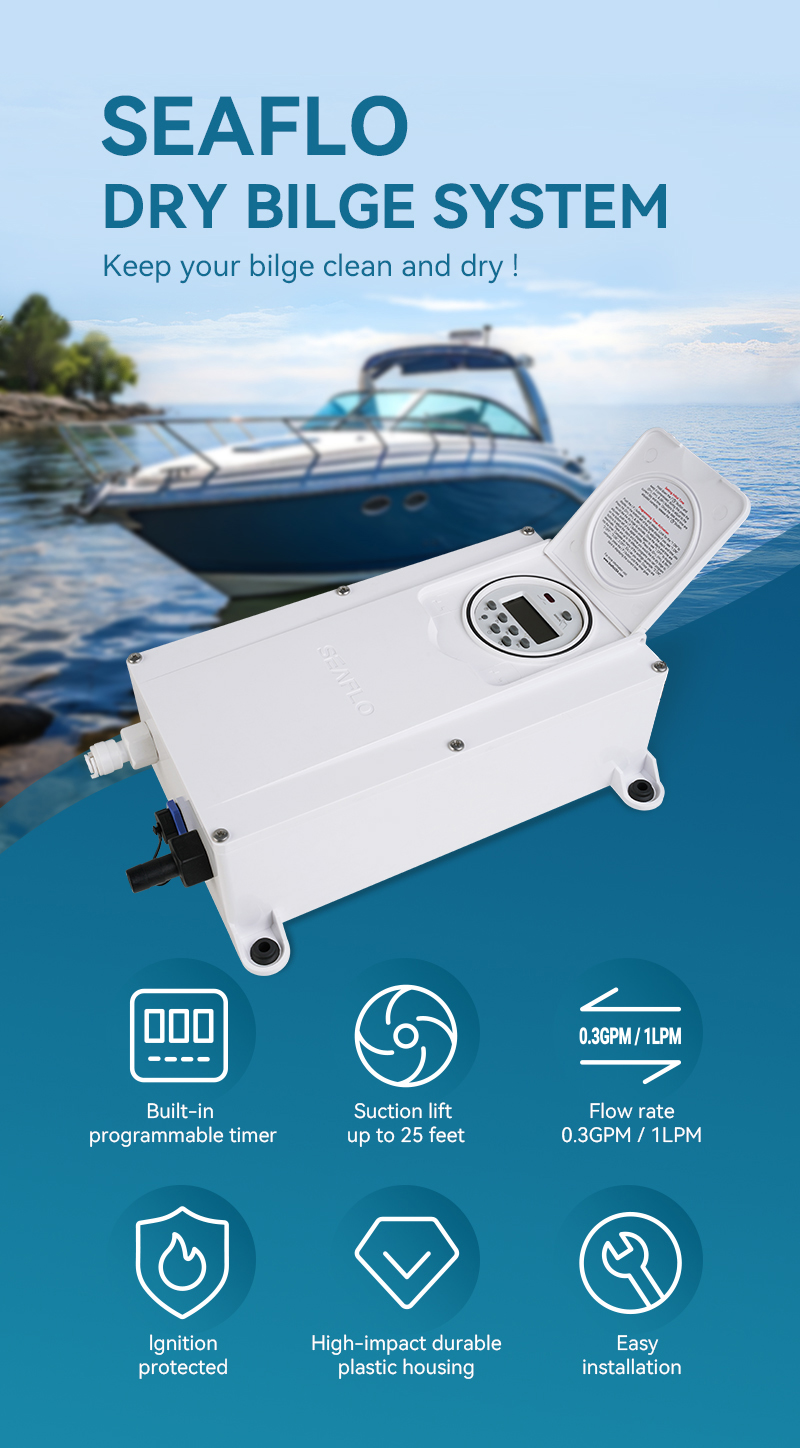

Self-priming pump, bilge pump
Voltage:12V / 24V
Flow Rate:1 LPM/0.3GPM
Outlet Dia:5/16"&1/2" Barb
Application Scenarios:Marine

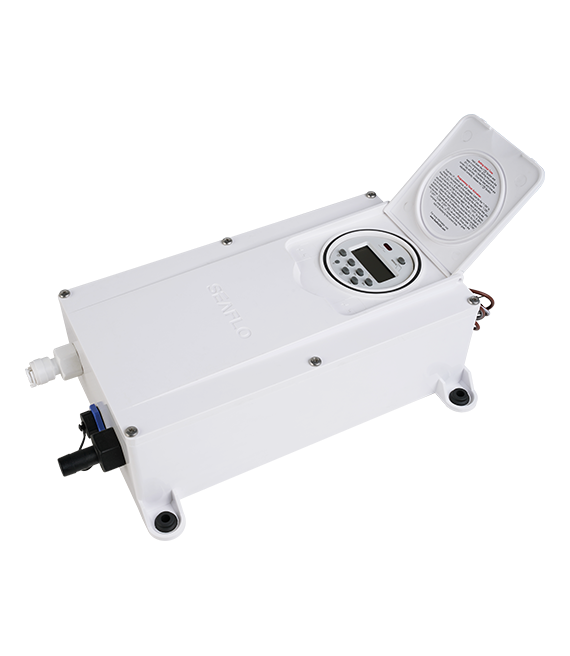

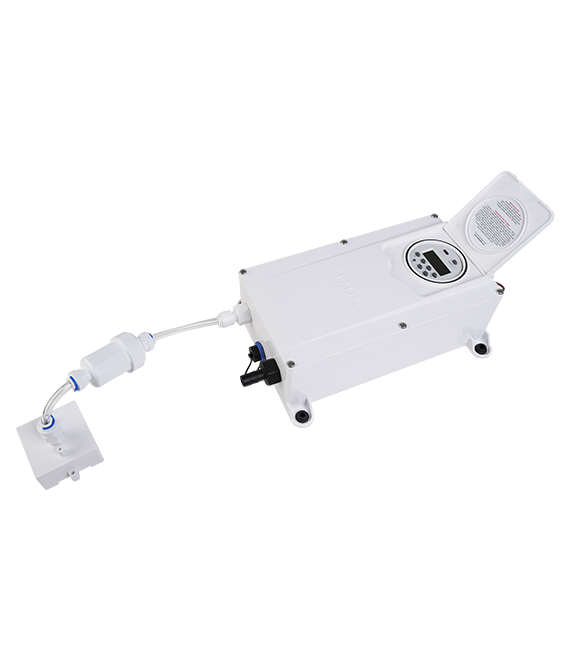

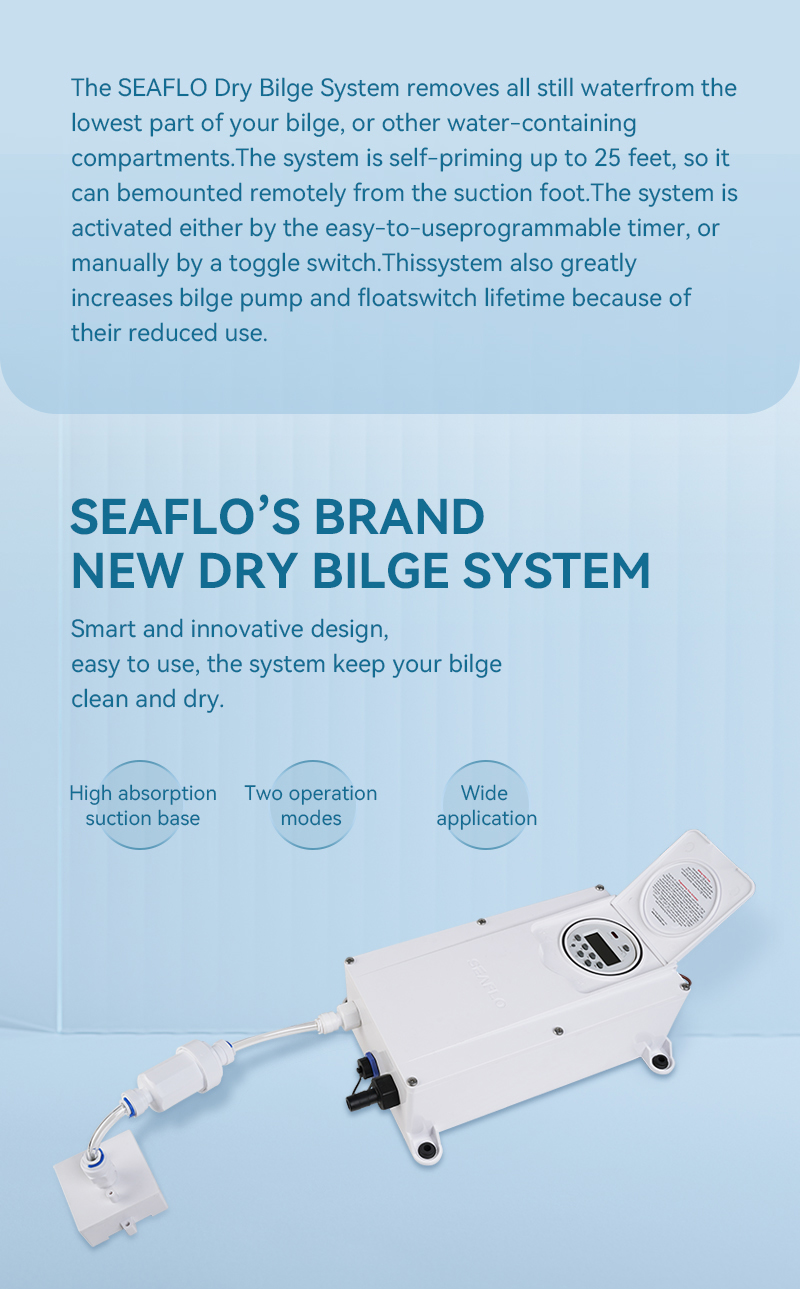

The SEAFLO Dry Bilge System removes all still waterfrom the lowest part of your bilge, or other water-containing compartments.The system is self-priming up to 25 feet, so it can bemounted remotely from the suction foot.The system is activated either by the easy-to-useprogrammable timer, or manually by a toggle switch.Thissystem also greatly increases bilge pump and floatswitch lifetime because of their reduced use.
FEATURES & BENEFITS

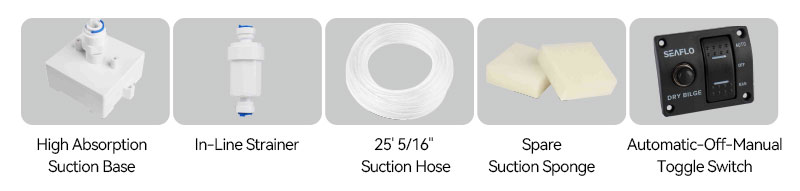

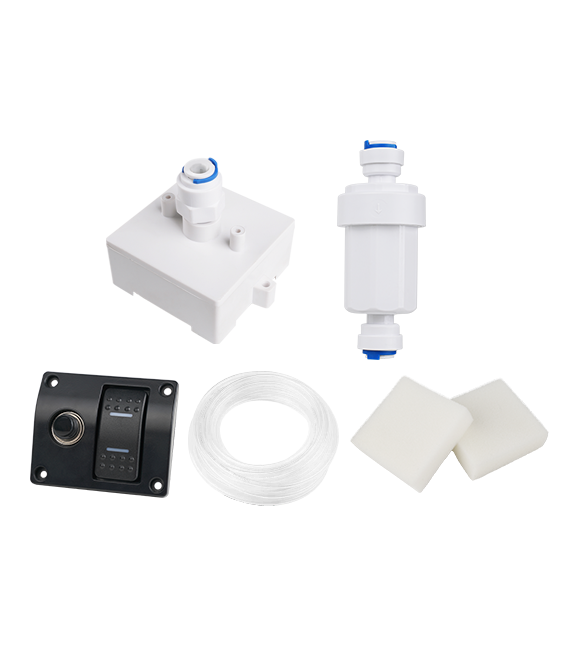

• 25' Self-priming suction allows the system to be remotely mounted.
•User program mable timer allows the user to activate the system asmuch, or as little, as needed.
• Thin (5/16") suction hose allows for easy bends and fits into tight spaces.· Quick-connect fittings allow for simple plumbing installation.

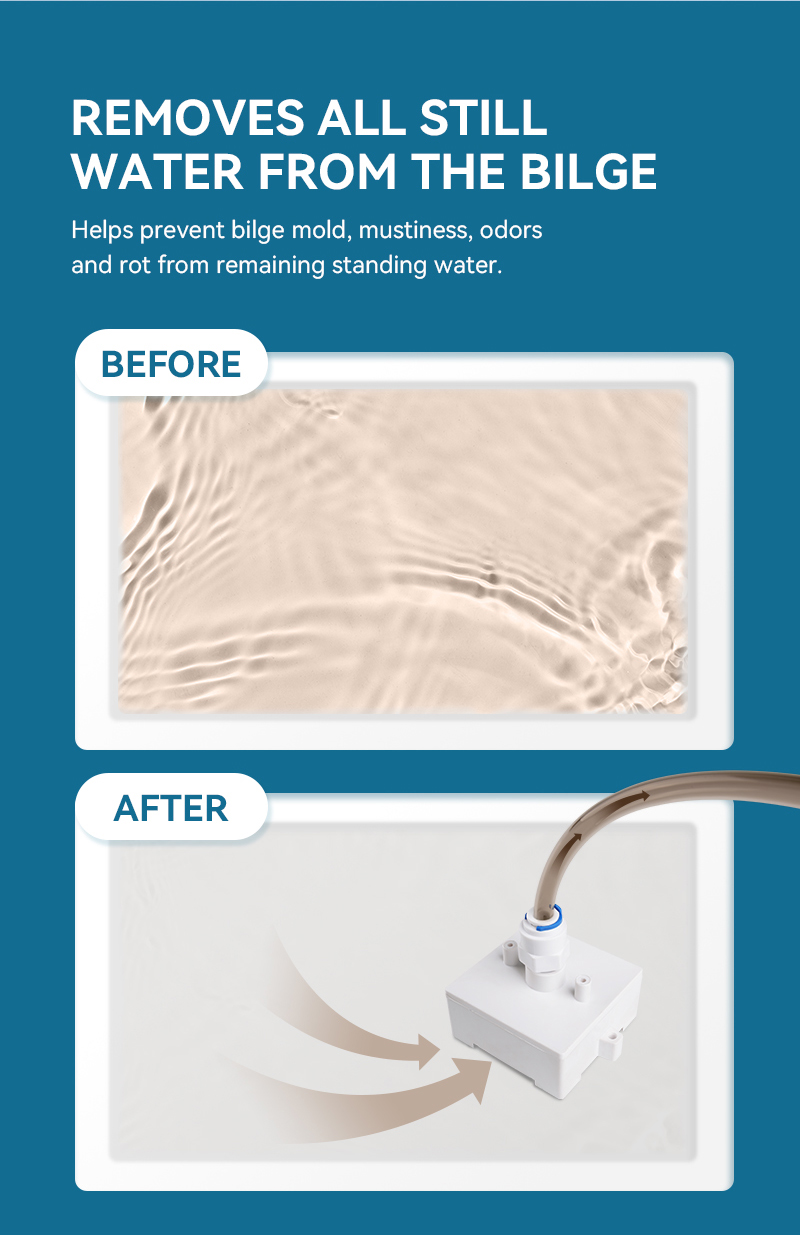

• High absorption suction base ensures a dry bilge.

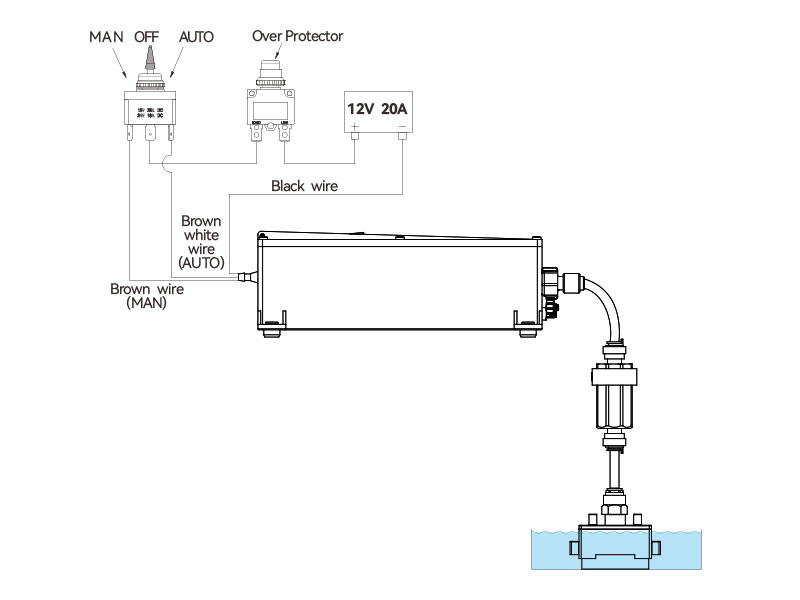

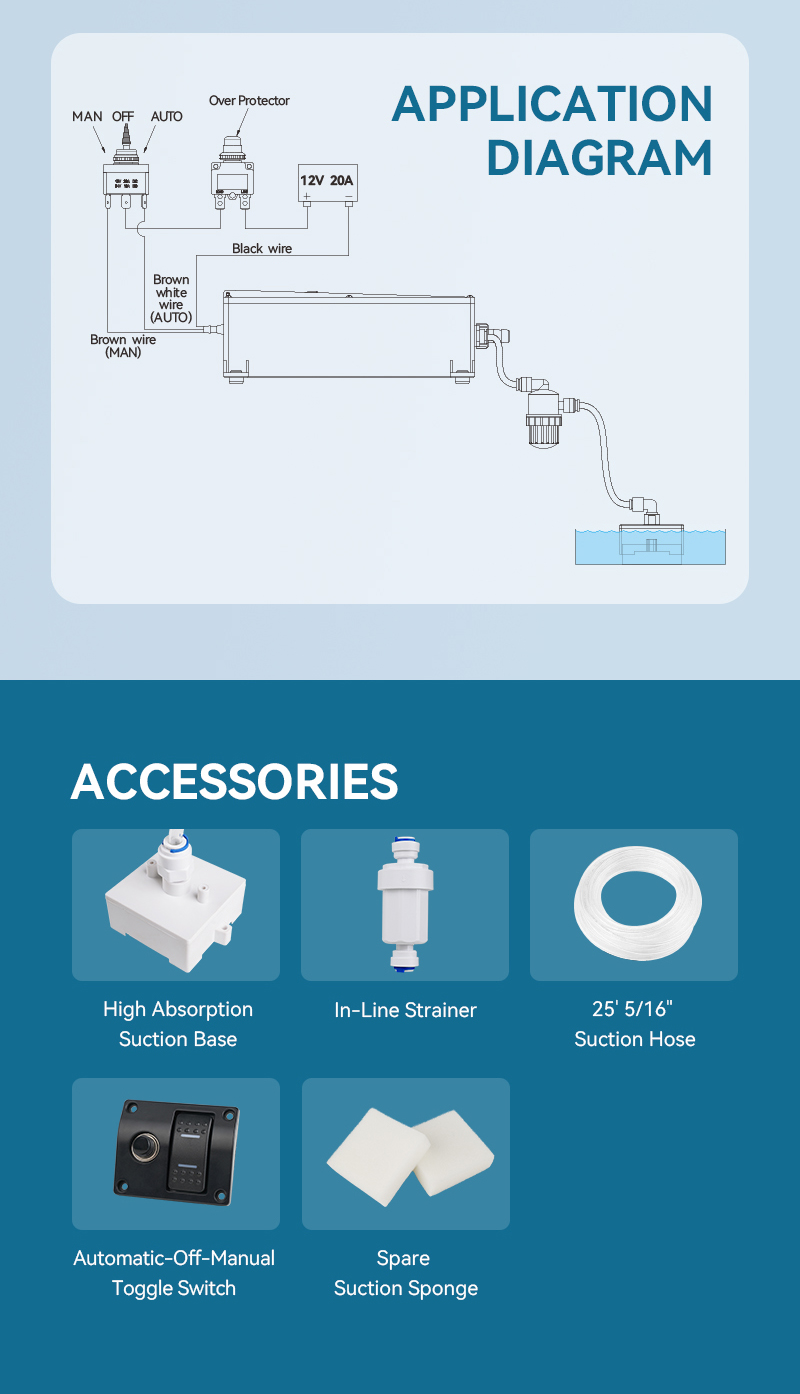

• Automatic-Off-Manualtoggle switch allows user to activate the system manually in addition to automatically.
• lgnition Protected- lSO 8846 Marine / SAE J1171 Marine.

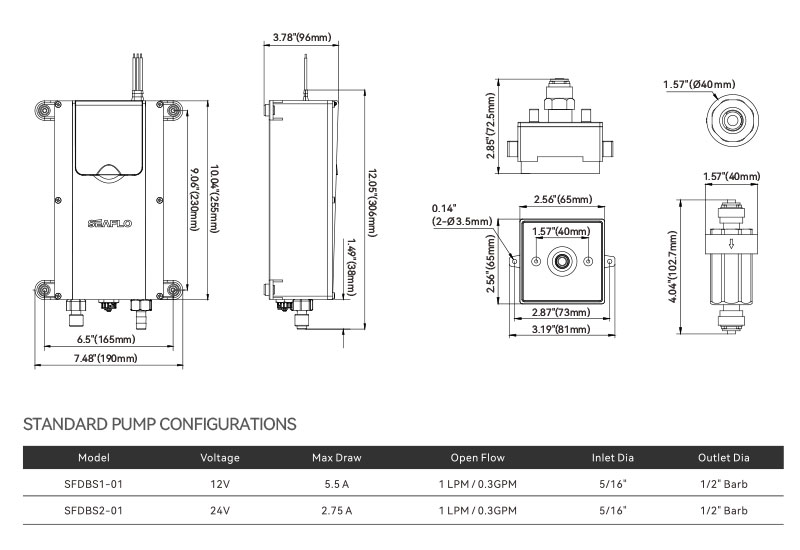

STANDARD PUMP CONFIGURATIONS
Model | Voltage | Max Draw | Open Flow (GPM/LPM)/ | Inlet Dia | Outlet Dia |
SFDBS1-01 | 12V | 5.5A | 0.3/1 | 5/16" | 1/2" Barb |
SFDBS2-01 | 24V | 2.75A | 0.3/1 | 5/16" | 1/2" Barb |
