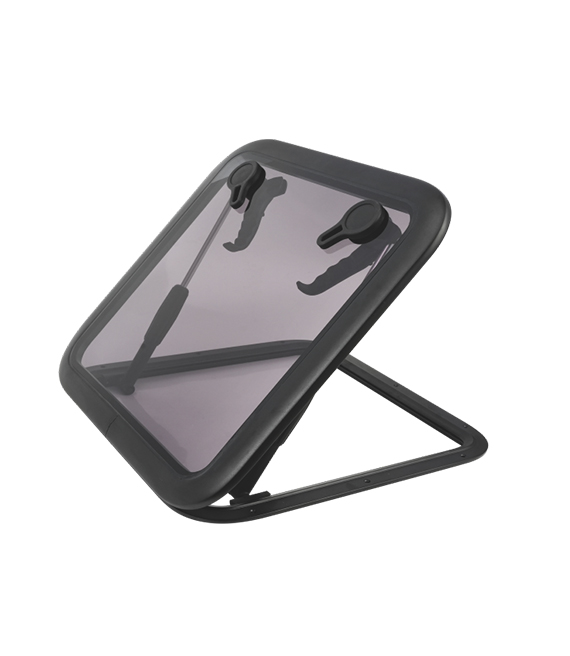

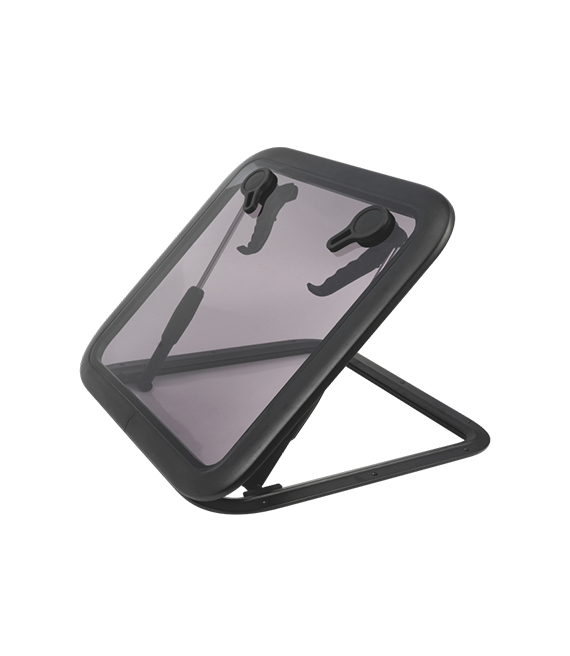

Square deck hatch、Marine Boat Window
Frame Size:19.9"(507mm)
Cut-out Size:17.4"(442mm)
Height:1.8"(42.5mm)
Deck Thickness:0.6"(15mm)
Color:Black
Model:SFDH2-507-01
Frame material : Aluminium Alloy Surface Treatment :Anodized Glass Material : Acrylic Handle Material : Nylon
MORE FEATURES & BENEFITS
• Frame material : Aluminium Alloy
• Surface Treatment :Anodized
• Glass Material : Acrylic
• Handle Material : Nylon
STANDARD CONFIGURATIONS
Model | Frame Size | Cut-out Size | Height | Deck Thickness | Color |
SFDH2-507-01 | 19.9"(507mm) | 17.4"(442mm) | 1.8"(42.5mm) | 0.6"(15mm) | Black |
SFDH2-572-01 | 22.5"(572mm) | 20"(507mm) | 1.8"(42.5mm) | 0.6"(15mm) | Black |

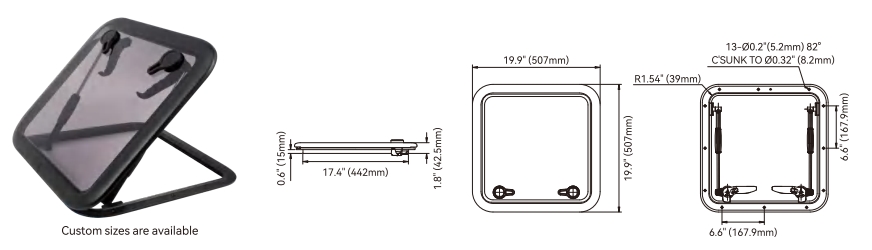

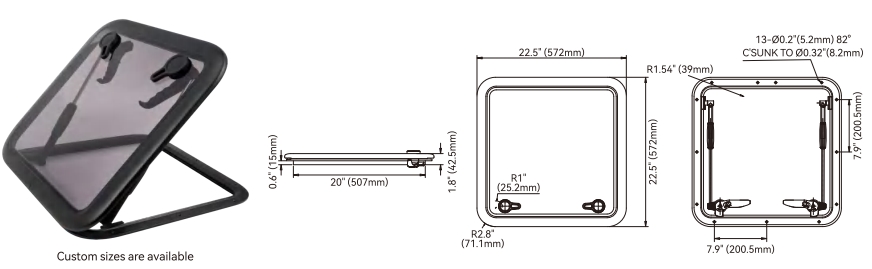

DIMENSIONS
SFDH2-507-01

SFDH2-572-01

SHIPPING INFORMATION
SFDH2-507-01
Unit Weight | 13.8 lbs(6.24 kg) |
Selling Unit Size (L x W x H) | 21.46" x 21.46" x 2.76" (54.5x 54.5 x 7 cm) |
Selling Unit Weight | 13.9 lbs(6.34 kg) |
Master Carton Size (L x W x H) | 22.44" x 22.24" x 6.69" (57 x 56.5 x 17 cm) |
Master Carton Qty | 2 pcs |
Master Carton Weight | 32.23 lbs(14.62 kg) |
Master Carton Volume | 0.055 m³ |
SFDH2-572-01
Unit Weight | 16.4 lbs(7.46 kg) |
Selling Unit Size (L x W x H) | 23.63" x 23.63" x 2.76" (60x 60 x 7 cm) |
Selling Unit Weight | 16.7 lbs(7.56 kg) |
Master Carton Size (L x W x H) | 24.41" x 24.41" x 6.69" (62 x 562 x 17 cm) |
Master Carton Qty | 2 pcs |
Master Carton Weight | 38.32 lbs(17.38 kg) |
Master Carton Volume | 0.065 m³ |
