Standard Oval portlight
Frame Size：15.6"x7.8"(397x197mm)
Cut-out Size：14.8"x6.9"(375x175mm)
Height：1.8"(42.5mm)
Deck Thickness：1.7"(44mm)
Color：Silvery
Model：SFP1-397-04
Frame material : Aluminium Alloy Surface Treatment :Anodized Glass Material : Acrylic Handle Material : Nylon
MORE FEATURES & BENEFITS
• Frame material : Aluminium Alloy
• Surface Treatment :Anodized
• Glass Material : Acrylic
• Handle Material : Nylon
STANDARD CONFIGURATIONS
Model | Frame Size | Cut-out Size | Height | Deck Thickness | Deck Thickness | Color | Geometry |
SFP1-397-04 | 15.6"x7.8"(397x197mm) | 14.8"x6.9"(375x175mm) | 1.8"(42.5mm) | 1.7"(44mm) | 1.2"(31mm) | Silvery | Oval |
SFP2-397-04 | 15.6"x7.8"(397x197mm) | 14.8"x6.9"(375x175mm) | 1.8"(42.5mm) | 1.7"(44mm) | 1.2"(31mm) | Black | Oval |

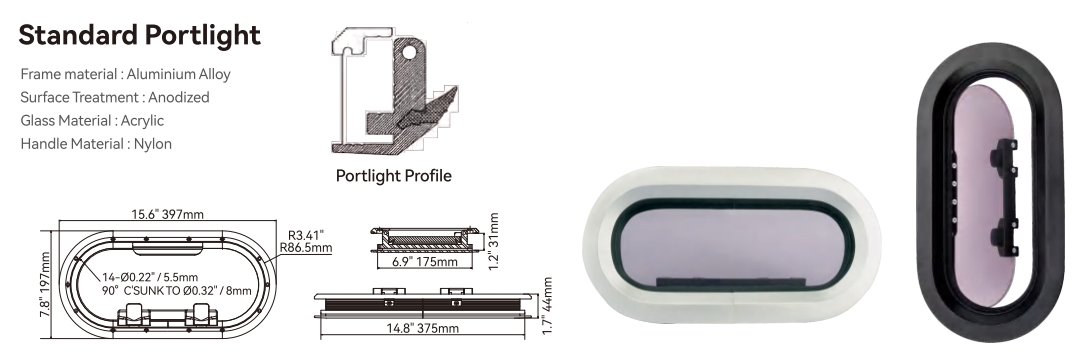

DIMENSIONS
SFP1-397-04/SFP2-397-04
SHIPPING INFORMATION
SFP1-397-04/SFP2-397-04
Unit Weight | 4.0 lbs(1.83 kg) |
Selling Unit Size (L x W x H) | 15.75" x 9.45" x 2.76" （40 x 24 x 7 cm） |
Selling Unit Weight | 4.3 lbs(1.93 kg) |
Master Carton Size (L x W x H) | 16.53" x 10.24" x 6.69" (42 x 26 x 17cm) |
Master Carton Qty | 2 pcs |
Master Carton Weight | 9.99 lbs (4.53 kg) |
Master Carton Volume | 0.019 m³ |
