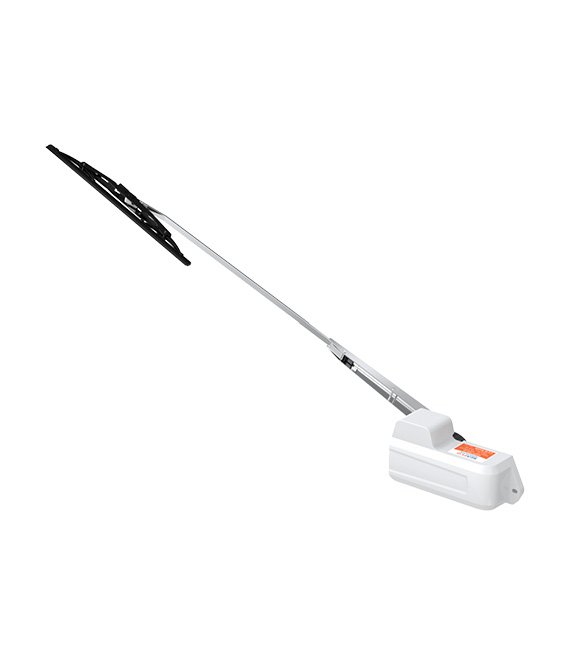

Wiper motor, rubber wiper blade, wiper blade
Model：SFWK1-0664-01
Max Current：2.5A
Voltage：12 V
Sweep Speed：45 sweeps/min
Providing efficient wiping solutions for every vessel. Reliable and durable wiper solutions for all marine environments.
FEATURES & BENEFITS
Factory preset to left parking position with a sweep angle of 110°
MORE FEATURES & BENEFITS
Wiper Motor Features:
· 6 Nm torque
· Adjustable sweep angles: 50°, 65°, 80°, 110°
· Adjustable self-parking to the right or left position
· Stainless steel driveshaft with anti-rotation design
· UV- and high-temperature-resistant thermoplastic housing
· Shaft Length: 64 mm / 2.5″
Wiper Arm Features:
· Adjustable length
· 316 stainless steel construction
· Reinforced durability
Wiper Blade Features:
· Rust-resistant iron frame with an anti-glare coating
· Natural rubber blade for smooth wiping
· Steel backer ensures even pressure on windshield
STANDARD CONFIGURATIONS
| Model | Max Current | Voltage | Sweep Speed | Motor Model | Wiper Arm Length | Wiper Blade Length | Fuse |
| SFWK1-0664-01 | 2.5A | 12 V | 45 sweeps/min | SFWM1-0664-01 | 12″~17″ (310~440mm) | 14″（355mm） | 5A |
| SFWK2-0664-01 | 1.2A | 24 V | SFWM2-0664-01 | 3A |
