Wiper Switch、 Rubber Wiper Blade Switch, Wiper Blade Switch
Model：SFSP-20-10
Max Current：20A (12V) or 10A (24V)
Voltage：12V / 24V
Wiper Switch have 3-position Switch: On / On / On. Protection Rating: IP68. Providing efficient wiping solutions for every vessel. Reliable and durable wiper solutions for all marine environments.
MORE FEATURES & BENEFITS
• 3-position Switch: On / On / On
• Protection Rating: IP68
• Suitable for 01 series two-speed wiper motors (10 Nm and 12 Nm)
STANDARD CONFIGURATIONS
| Model | Max Current | Voltage | Fuse | Cut-out Size | Dimensions |
| SFSP-20-10 | 20A (12V) or 10A (24V) | 12V / 24V | 20A | 36.8 x 21.1 mm | 9 x 26 mm |

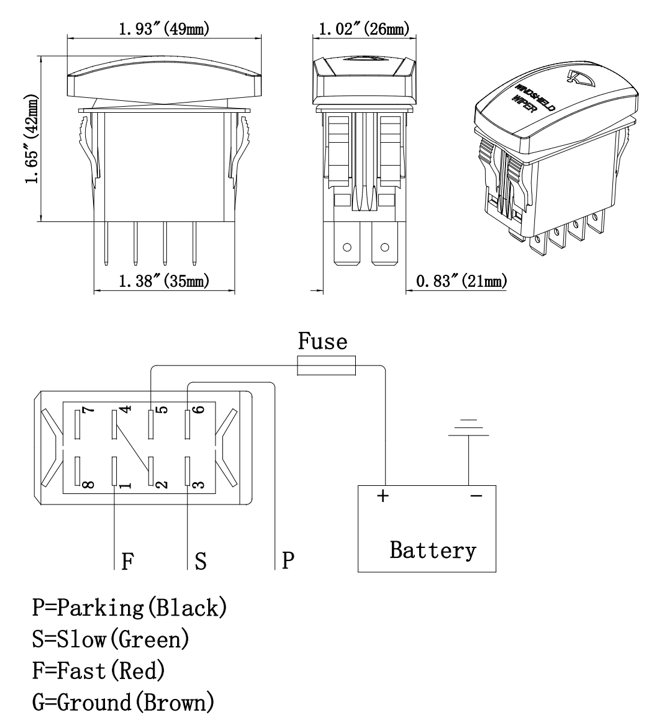

Dimension
