FEATURES & BENEFITS

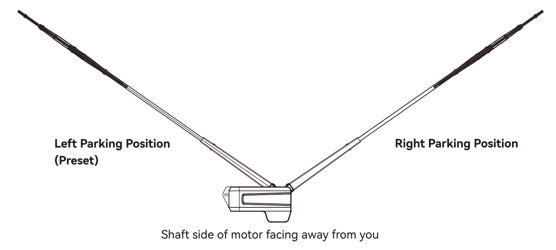

Factory preset to left parking position with a sweep angle of 110°

MORE FEATURES & BENEFITS

·  6 Nm torque

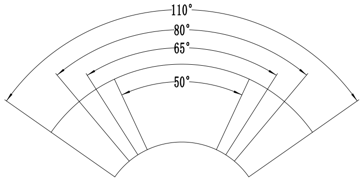

·  Adjustable sweep angles: 50°, 65°, 80°, 110°

·  Adjustable self-parking to the right or left position

·  Stainless steel driveshaft with anti-rotation design

·  UV- and high-temperature-resistant thermoplastic housing

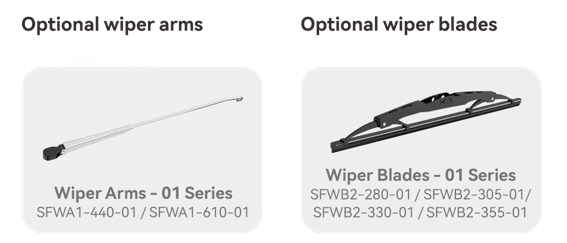

·  Powers arm/blade combinations up to 440 mm / 355 mm

STANDARD CONFIGURATIONS

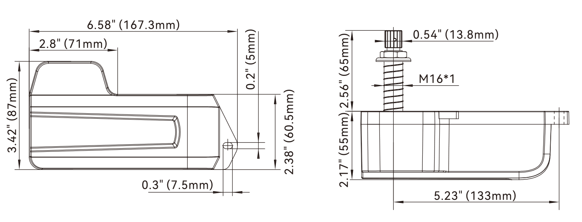

Dimension

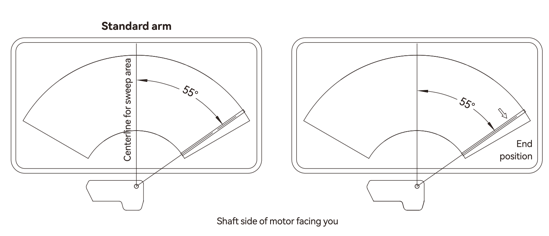

Installation Diagram

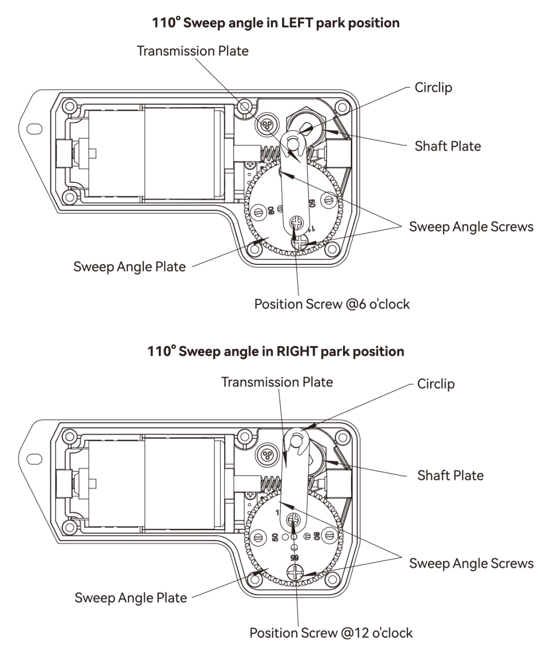

Adjusting the Wiper Angle:

·  Optional angles: 50°, 65°, 80°, 110°.

·  Remove the circlip, position screw, and sweep angle screw.

· Each angle is marked on the sweep angle plate with corresponding holes. Rotate the plate to align the desired angle hole to the "6 o’clock" or "12 o’clock" position. Then, reassemble and securely tighten the removed parts.

Adjusting the Wiper Park Position:

· For left-side parking, rotate the desired angle hole to the “6 o’clock” position.

· For right-side parking, rotate the desired angle hole to the “12 o’clock” position.
