Marine washdown kit, quick connect washdown kit
Deck connector：1/2" NPT
Bayonet connector：3/4" GHT
Nipple：3/4" GHT
Valve：Check valve

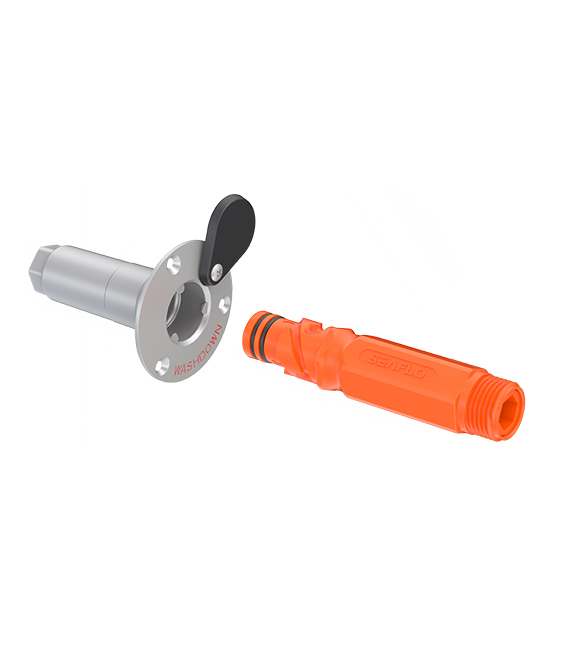

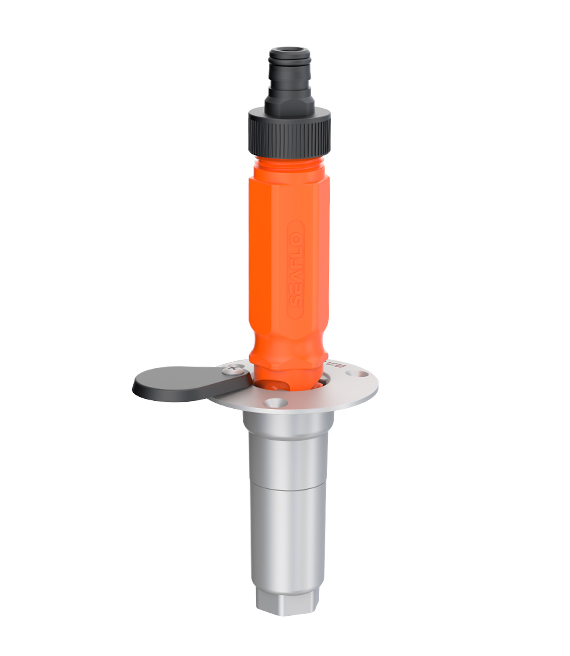

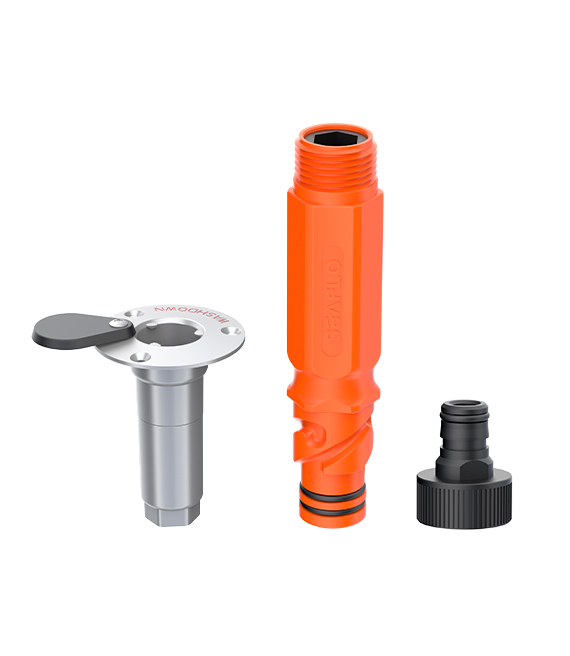

This Washdown Quick Connect Kit for boats yachts and RVs allows instant water connection in seconds. Its recessed deck connector is made of SUS316 stainless steel and comes with a protective cap. The bayonet connector connects to your outlet hose quickly and easily locks into the deck connector when needed.

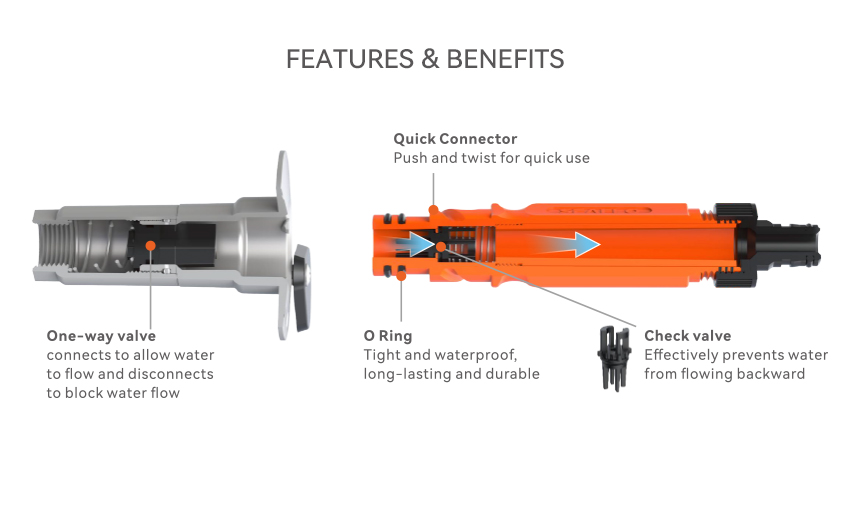

MORE FEATURES & BENEFITS
Leak-free quick connect that connects and disconnects under full pressure
Use with a nipple for instant connection to the spray gun, making it easy to use
Hose connection: Deck connector-1/2"NPT, Bayonet connector-(3/4"GHT)

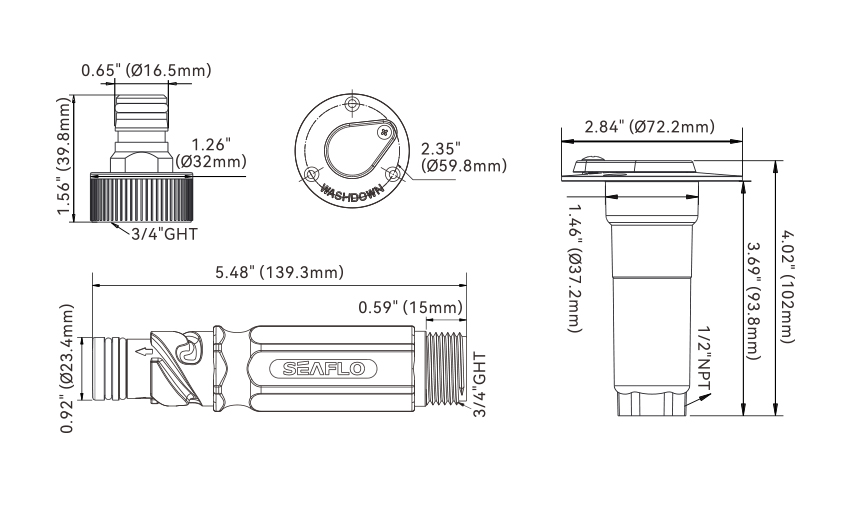

DIMENSIONS DRAWING
STANDARD CONFIGURATIONS
Model | Deck Connector | Bayonet Connector | Nipple | Valve |
| SFWCK-01 | 1/2" NPT | 3/4" GHT | 3/4" NPT | Check valve |
