Diesel pump, electric fuel injection pump, electric fuel transfer pump
Voltage：12V/24V
Max draw：20A/10A
Max flow：13GPM (50LPM)
Suction：3m
Max head：10m
Ports：3/4" NPT; 3/4"BSP
SEAFLO refuelling pump is a self-priming diesel pump for reliable and efficient performance. Powered by 12/24V mains supply, its maximum transfer is up to 50 liters per minute at 3 meters head. It offers an easy and compact installation on earth moving machinery like excavators, cranes, road rollers, generators, etc.
BENEFITS & FEATURES
MORE FEATURES & BENEFITS
Flow rate up to 50LPM (13GPM) for fast refuelling
Self-priming capability with up to 3 metres (9.6 feet) vertical distance
High head capability goes to maximum 10 metres (32 feet)
IP55 protected motor resists dust and water ingress
Capable of continuous rated operation at 3 metres lift
Support overheat and over-current protection
Vibration tested for safety guarantee
Supplied 1-inch hose adaptors for easy installation

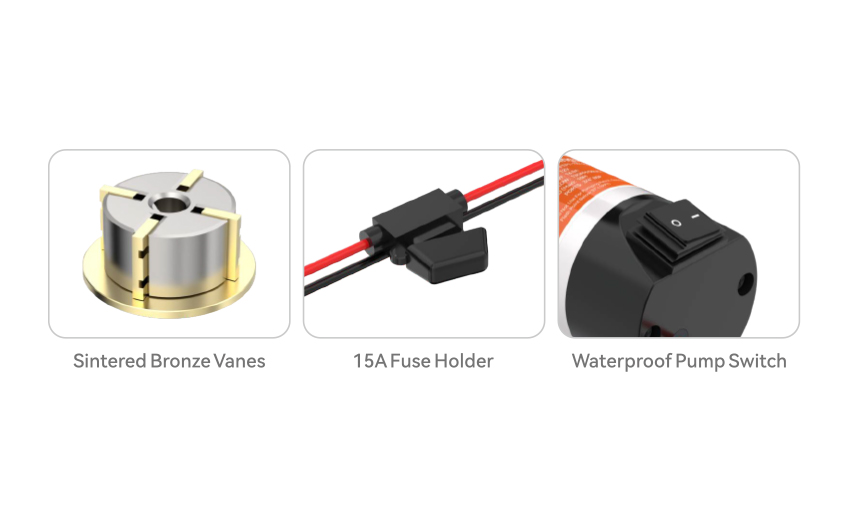

Rugged cast iron construction with bronze sliding vanes for long working in challenging condition

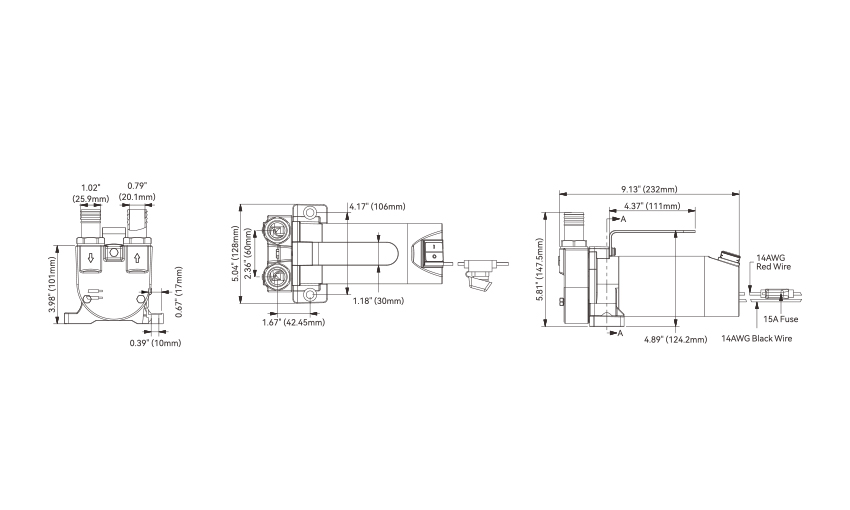

DIMENSION DRAWING

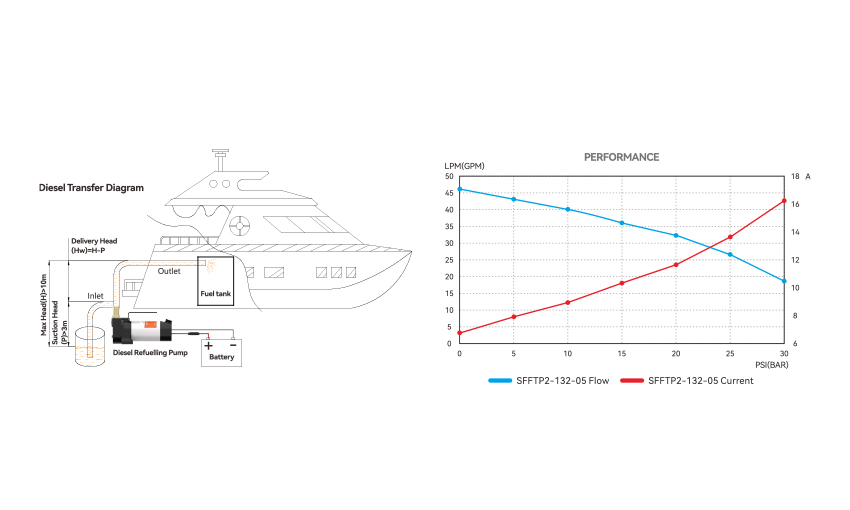

PERFORMANCE
STANDARD CONFIGURATIONS
| Model | Voltage | Current | Maximum Draw | Open Flow | Suction | Head (Max) | Fuse | Ports |
| SFFTP1-132-05B | 12V | 16A | 20A | 13/50 | 3m | 10m | 25A | 3/4″ BSP |
| SFFTP2-132-05B | 24V | 8A | 10A | 13/50 | 3m | 10m | 15A | 3/4″ BSP |
| SFFTP1-132-05N | 12V | 16A | 20A | 13/50 | 3m | 10m | 25A | 3/4″ NPT |
| SFFTP2-132-05N | 24V | 8A | 10A | 13/50 | 3m | 10m | 15A | 3/4″ NPT |
