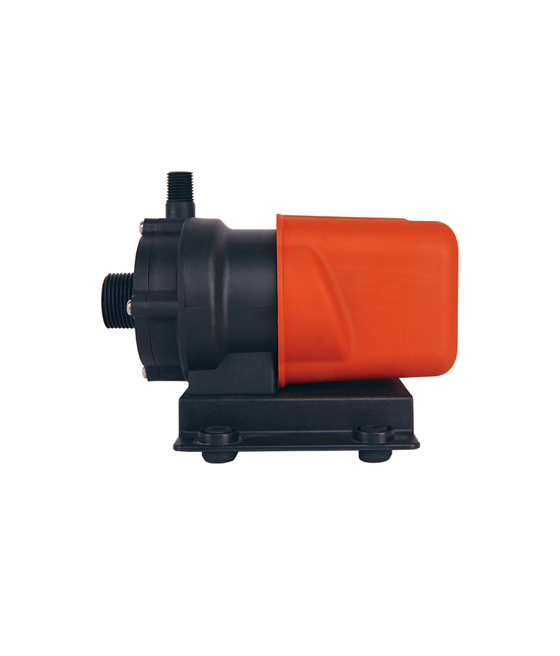

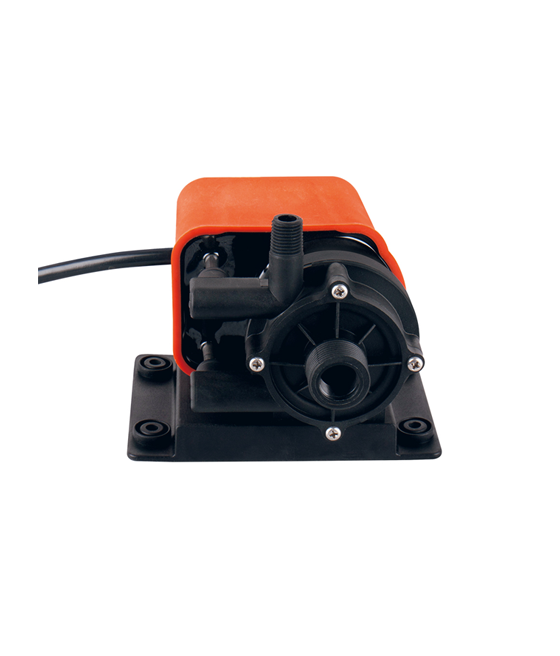

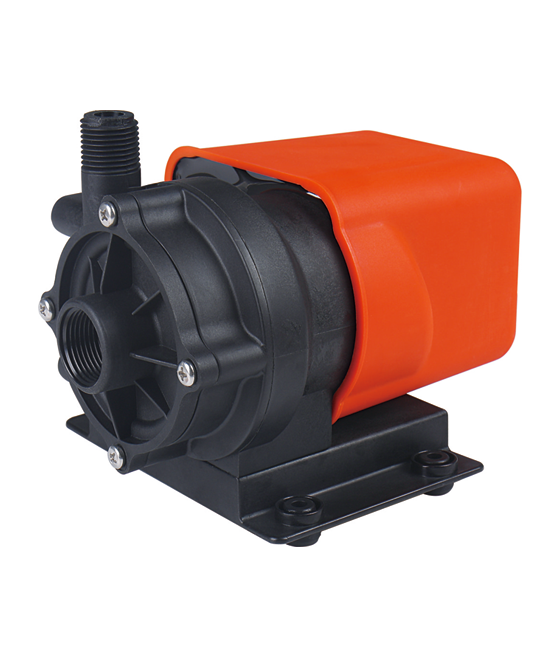

Air Conditioning Pump，Air Conditioning Drainage Pump
Voltag：115V / 230V
Flow Rate：5 GPM-18.5 LPM
Frequency：50 Hz-60 Hz

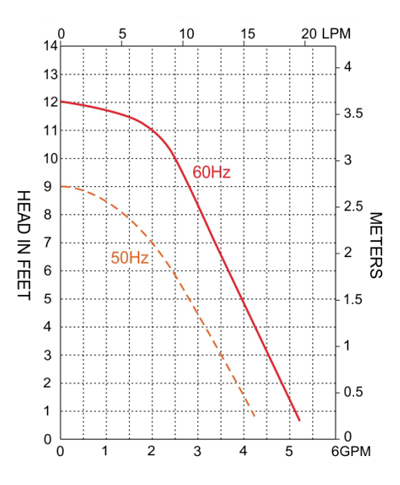

Head：13 ft / 5.7 psi - 2.7 m
Liquid Temperature：Withstands 54° C (130° F)

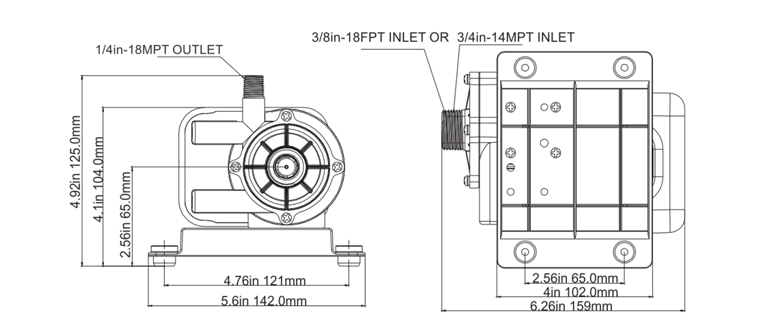

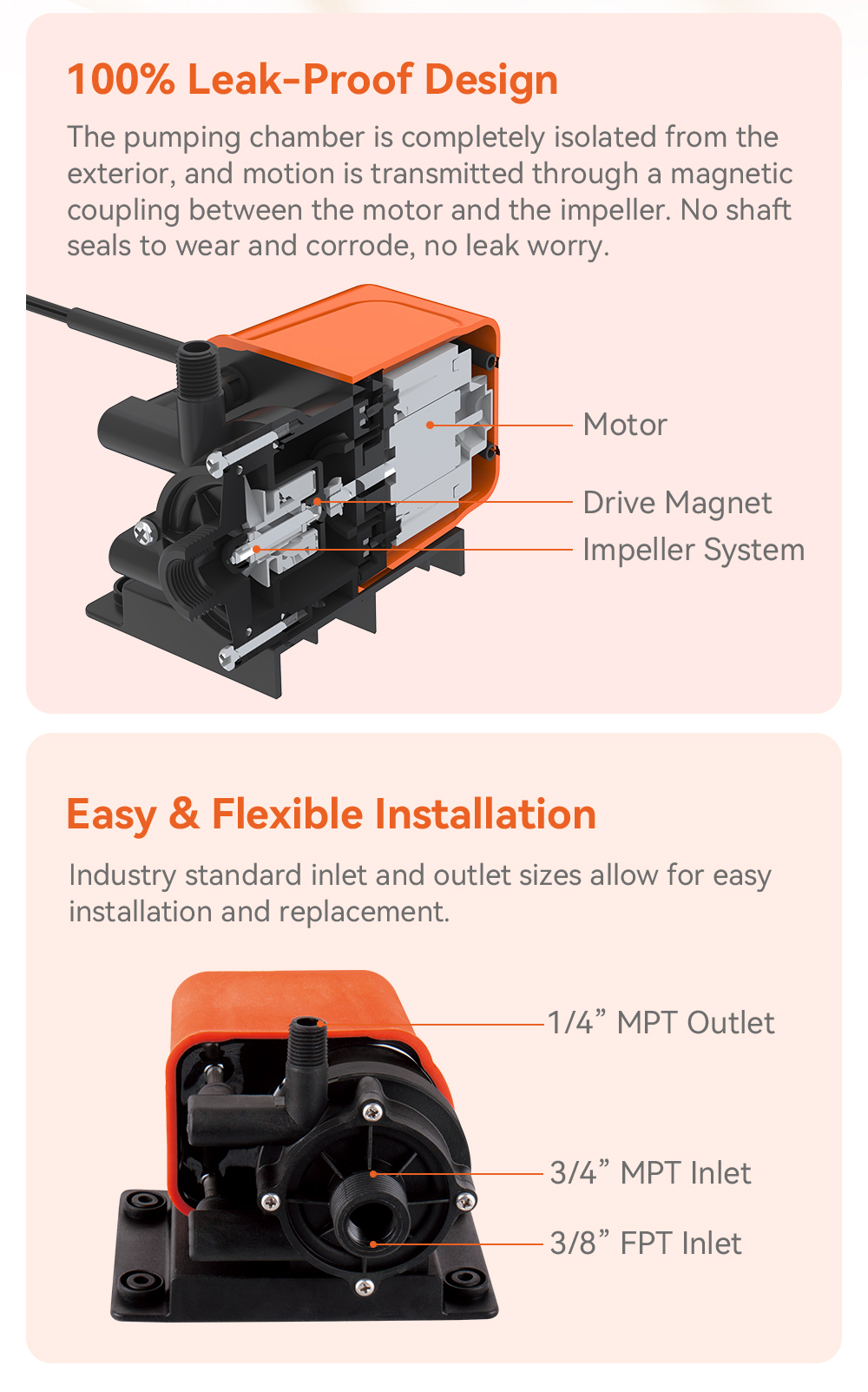

Inlet Ports：3/4" NPT & 3/8" NPT
Outlet Ports：1/4" NPT

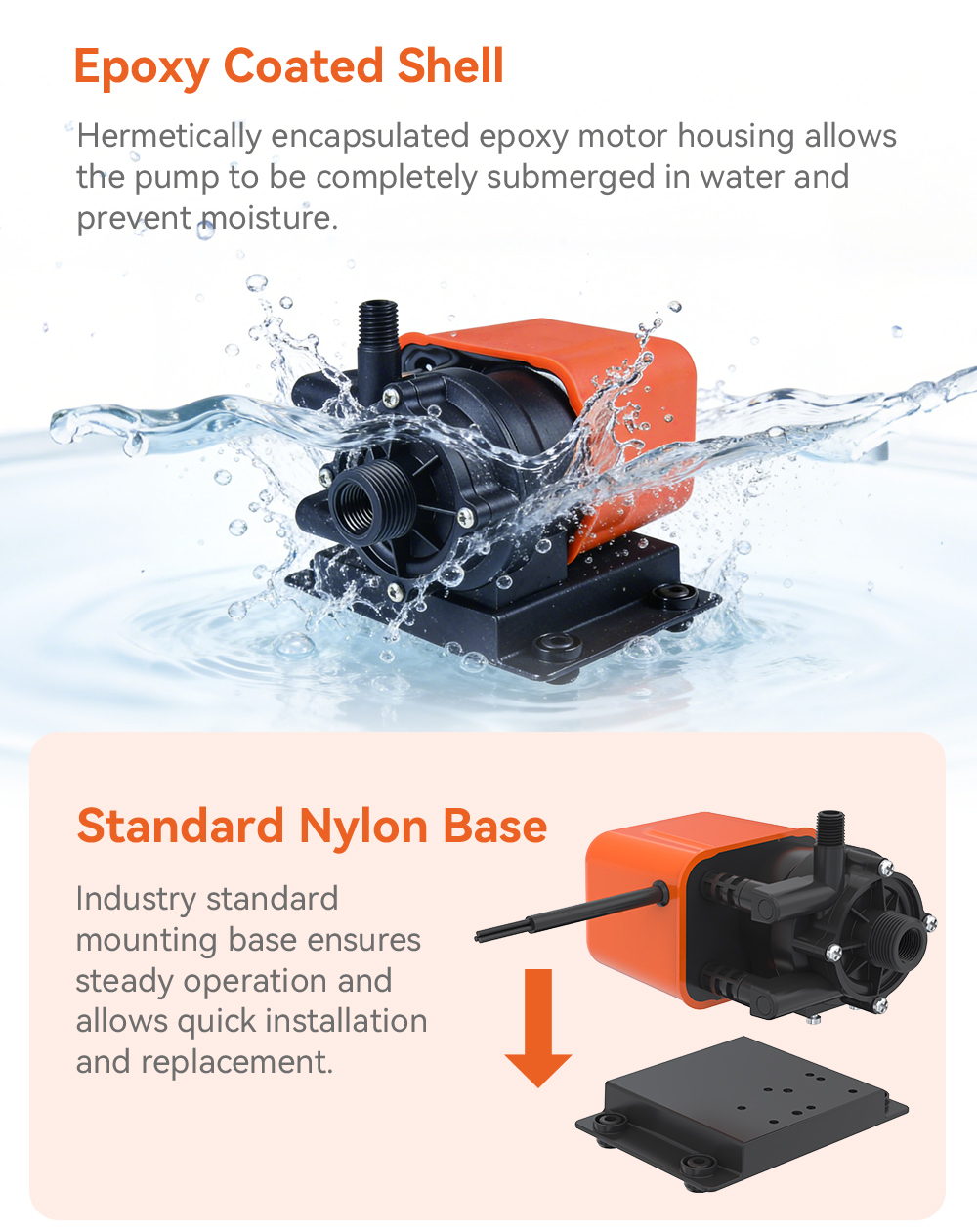

The SEAFLO Magnetic Circulation Pump is a centrifugal magnetic drive pump, eliminating the need for a shaft seal. Pumps are serviceable with a screwdriver. The pump is able to be run fully submerged or in open air for complete moisture protection. It also can pump liquids with a specific gravity greater than water, have a higher viscosity.

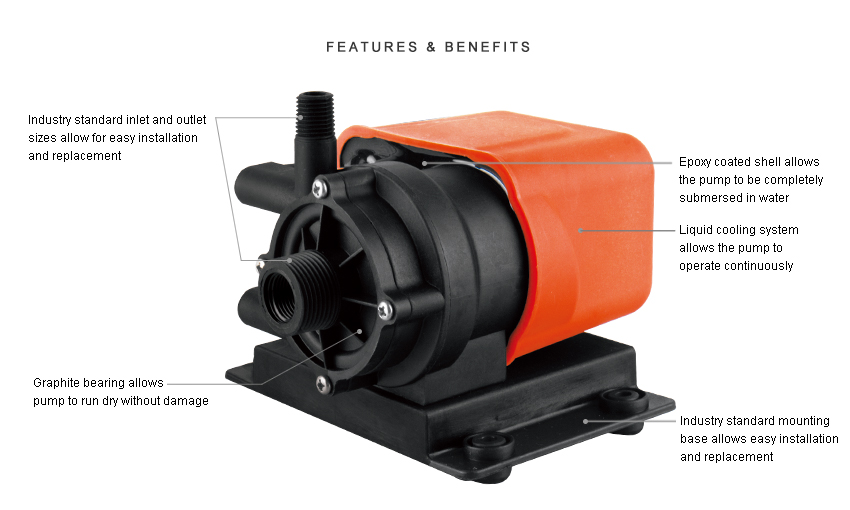

MORE FEATURES & BENEFITS
• For use with AC system up to 12,000 BTU
• More than 10,000 hours lifetime
• 5 GPM seawater circulation pump
• Run dry safe for normal workloads

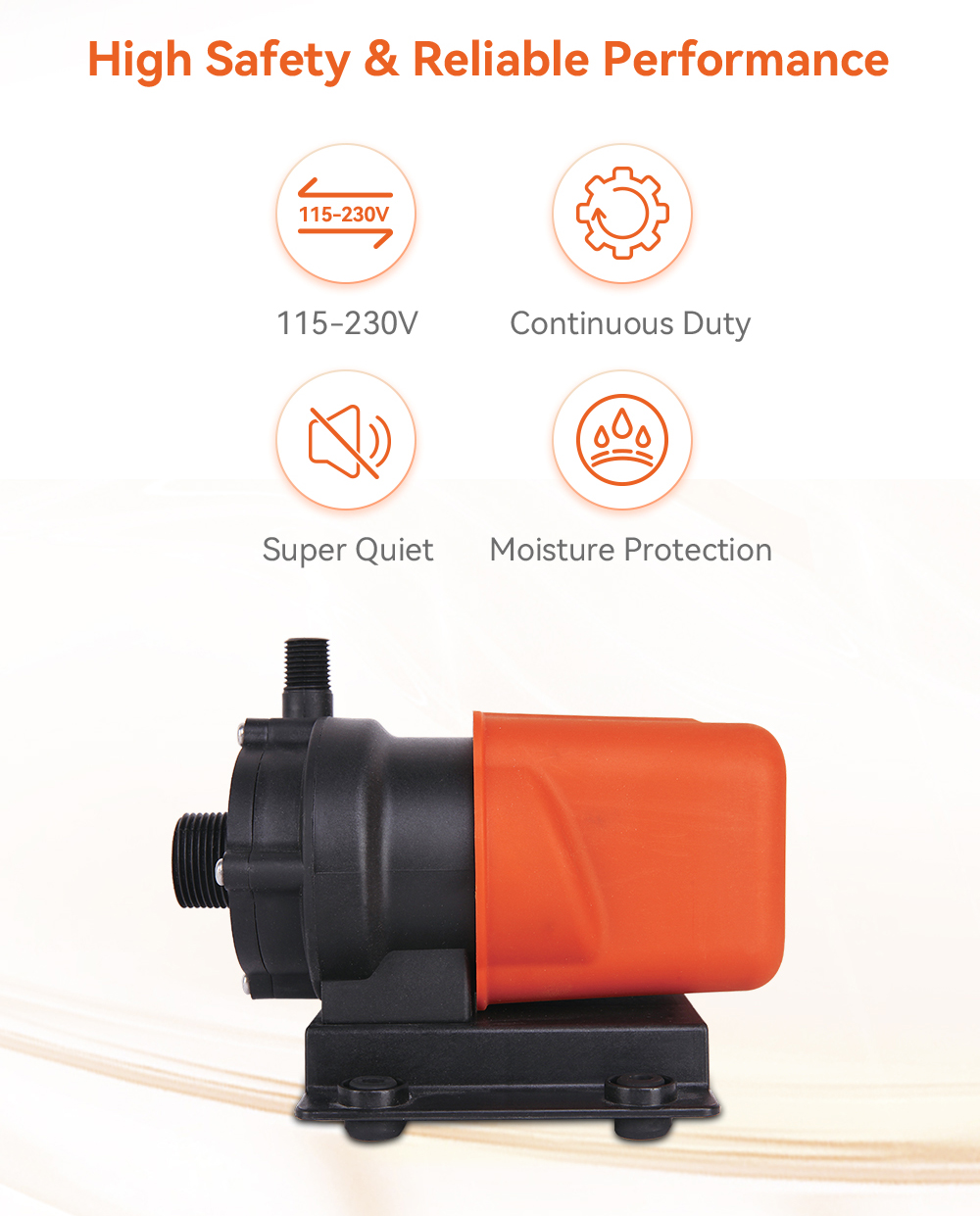

• Continuous duty
• Replaces any brand marine air conditioning pump
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Flow Rate |
Frequency |
Head |
Power |
Amps Draw |
| SFCPA1-G250-01 | 115 V | 5 GPM | 60 Hz | 13 ft / 5.7 psi | 56 W | 0.99 A |
|
18.5 LPM |
50 Hz |
2.7 m |
58 W |
1.1 A |
||
| SFCPA2-G250-01 | 230 V |
5 GPM |
60 Hz |
13 ft / 5.7 psi |
55 W | 0.50 A |
|
18.5 LPM |
50 Hz |
2.7 m |
55W |
0.56 A |
SHIPPING INFORMATION
|
Unit Weight |
4.85 lbs (2.20 kg) |
|
Selling Unit Size (L x W x H) |
7.28"x 6.5 "x 5.12" (18.5*16.5*13.0 cm) |
|
Selling Unit Weight |
5.29 lbs (2.4 kg) |
|
Master Carton Size (L x W x H) |
16.34"x 13.78"x 7.87" (41.5*35.0*20.0 cm) |
|
Master Carton Qty |
6 pcs |
|
Master Carton Weight |
32.63 lbs (14.8 kg) |
|
Master Carton Volume |
0.029 m³ |
