Bilge blower, low noise fan, cooling fan, straight fan, bilge fan, exhaust fan
Voltage：12V / 24V
Air Flow (cfm/cmh)：130/220
Intake Pipe Dia：3"/76 mm
SEAFLO 3” In-line Blowers provide ventilation for bilges, engine compartments, galleys and heads. Designed for efficient, high output operation, these blowers feature our exclusive front and rear shaft seals and corrosion resistant motor housings for long life. Compact and easily installed on any flat surface, SEAFLO In-line Blowers provide higher air flow and lower amp draw.

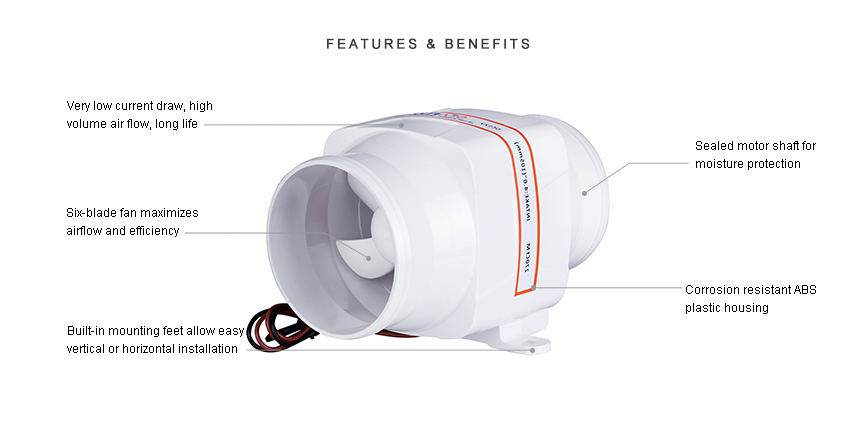

MORE FEATURES & BENEFITS
• Meets or exceeds ISO 8846 certification
• Built-in mounting feet allows easy vertical or horizontal installation
• Very low current draw, high volume air flow, long life
• Four/Six-blade fan maximizes airflow and efficiency
• Sealed motor shaft for moisture protection
• Corrosion resistant ABS plastic housing
STANDARD CONFIGURATIONS
| Model | Voltage | Air Flow (cfm/cmh) | Max Draw (A) | Fuse (A) | Intake Pipe Dia |
| SFIB1-130-01 | 12V | 130/220 | 2.5A | 5.0A | 3"/76 |
| SFIB2-130-01 | 24V | 130/220 | 1.3A | 3.0A | 3"/76 |
SHIPPING INFORMATION
Unit Weight | 1.1 lbs (0.5 kg) |
Selling Unit Size (L x W x H) | 8.46" x 5.39" x 4.72 " (21.5 x 13.7 x 12 cm) |
Selling Unit Weight | 1.35 lbs (0.61 kg) |
Master Carton Size (L x W x H） | 25.98" x 14.5" x 10.63" (66 x 29.2 x 27 cm) |
Master Carton Qty | 12 pcs |
Master Carton Weight | 16.31 lbs (7.4 kg) |
Master Carton Volume | 0.052 m³ |
