Snail blower, flange fixed fan, eddy current fan, curved fixed fan
Voltage:12V / 24V
Air Flow (cfm/cmh):320/550
Provides ventilation for engine compartments, galleys, bilges and heads. Designed for efficient, high output operation, these blowers feature our exclusive front and rear shaft seals and corrosion resistant motor housings, white ABS plastic construction for long life and use in the marine environment.

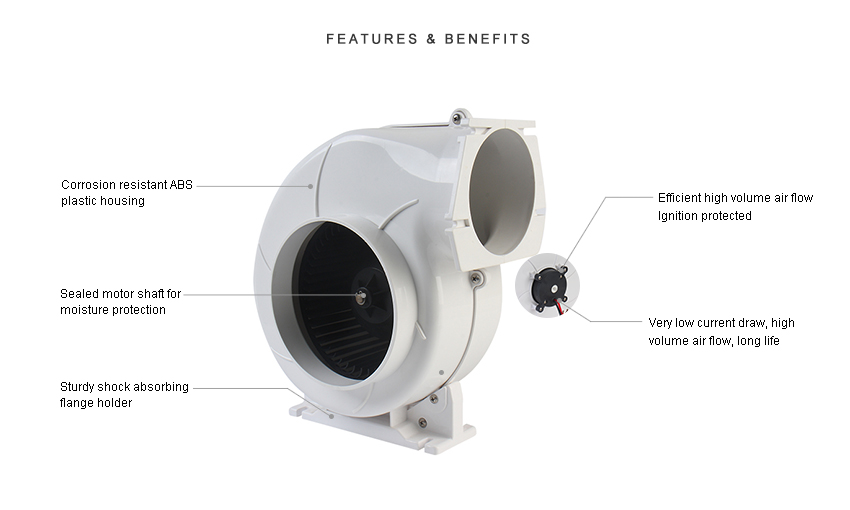

MORE FEATURES & BENEFITS
• Efficient high volume air flow
• Very low current draw, long life

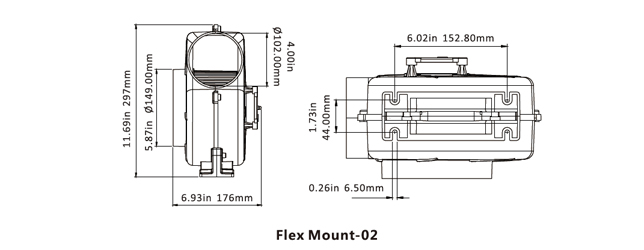

• Available in either Flex Mount or Flange Mount
• Sealed motor shaft for moisture protection
• Corrosion resistant ABS plastic housing
• Ignition protected
• CE conforms with EN 50014-1, EN N 61000-3-3
STANDARD CONFIGURATIONS
Model | Voltage | Air Flow | Max Draw (A) | Fuse |
SFBB1-320-02 | 12V | 320/550 | 11.0A | 16.0A |
SFBB2-320-02 | 24V | 320/550 | 6.0A | 10.0A |
SHIPPING INFORMATION
Unit Weight | 4.72 lbs (2.14 kg) |
Selling Unit Size (L x W x H) | 11.73" x 6.3"x 7.24" (29.8 x 16 x 18.4 cm) |
Selling Unit Weight | 5.74 lbs (2.61 kg) |
Master Carton Size (L x W x H) | 21.14" x 12.2" x 15.67" (53.7 x 31 x 39.8 cm) |
Master Carton Qty | 4 pcs |
Master Carton Weight | 25.13 lbs (11.4 kg) |
Master Carton Volume | 0.066 m³ |
