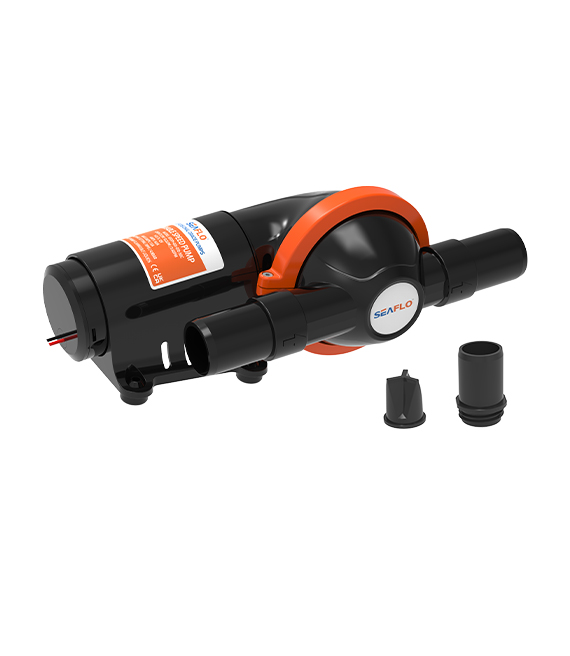

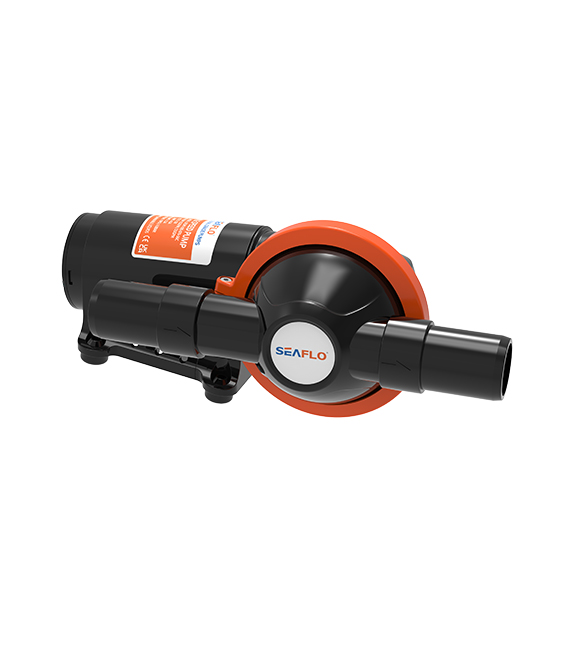

Diaphragm Waste Pump

Waste Pump,Compact Waste Water Diaphragm Pump,Shower Drain Pump,Sink Drain Pump

Voltage:12V/24V

Open Flow:5.0GPM/19.0LPM

Ports:38mm (1-1/2") or 19mm(3/4")

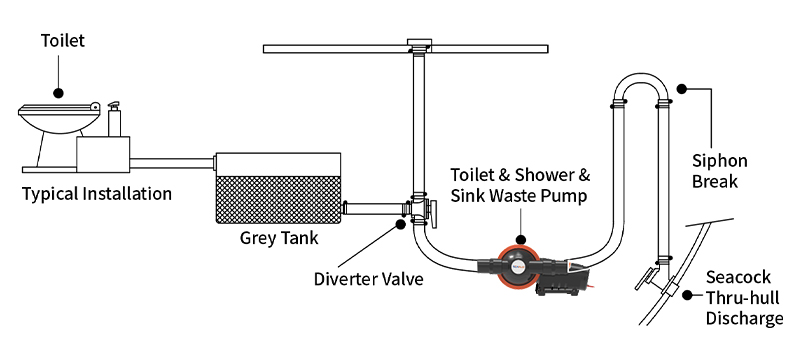

Single diaphragm waste pump designed to handle unmacerated black water toilet waste and Shower & Sink Drain Pump. Self-priming pump can be run dry. Non-choke valve, no filter required. Can pump a mixture of air and water. Double outlet valves to ensure continuous flow. Adjustable clamping ring allows the head assembly to be rotated 360 degree to accommodate plumbing position.

Email consultation
collect
SHARE THIS PRODUCT:

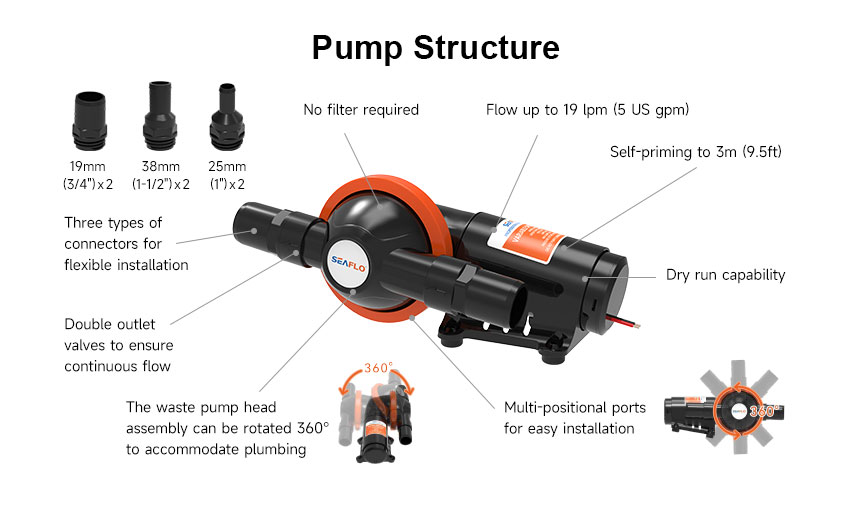

MORE FEATURES & BENEFITS

•  Single diaphragm pump designed

•  Uses multi-positional ports for easy mounting of the pump

•  Flow up to 19 lpm (5 US gpm)

•  Self-priming to 3m (9.5ft), dry run capability

•  Connections for 38mm (1-1/2") or 19mm (3/4") ports

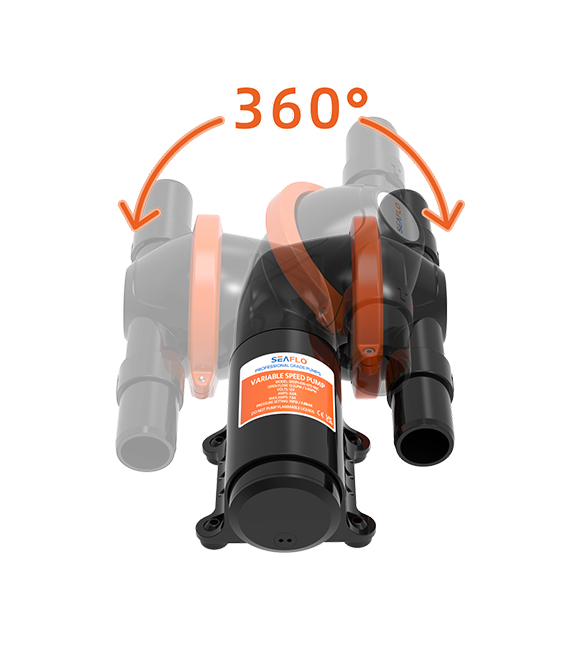

•  The waste pump head assembly to be rotated 360° to accommodate plumbing

•  No filter required

•  Double outlet valves to ensure continuous flow

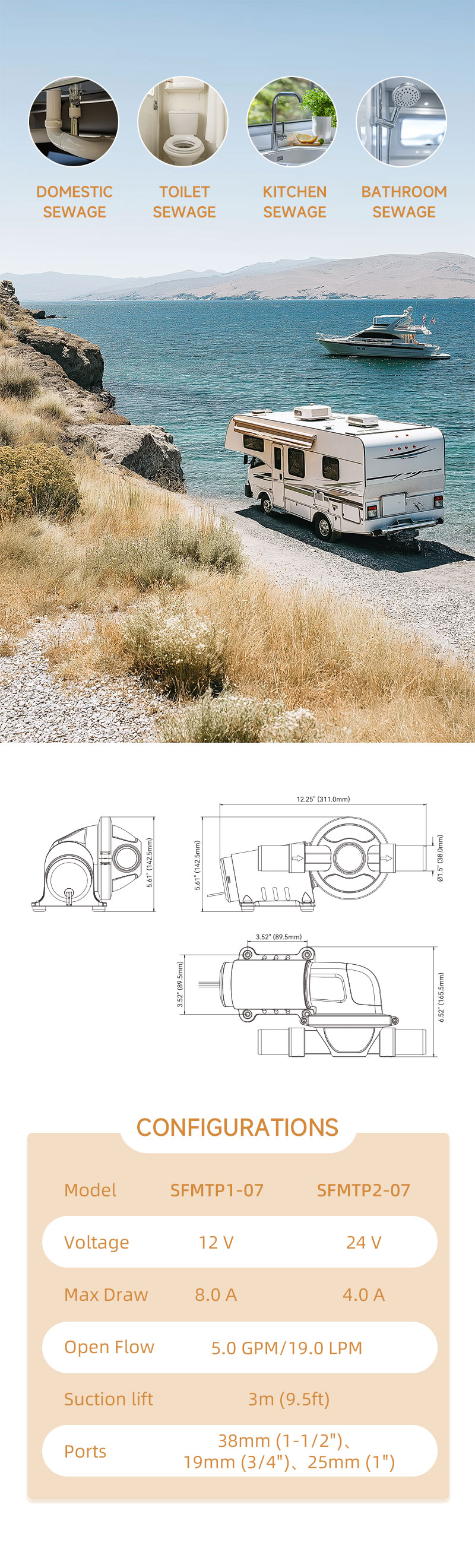

STANDARD PUMP CONFIGURATIONS

ModelVoltage

Open Flow
(GPM/LPM)

Max Draw(A)Ports

Suction lift

SFMTP1-07

12V5.0/19.08.0A38mm (1-1/2") or 19mm(3/4")3m (9.5ft)

SFMTP2-07

24V5.0/19.02.5A38mm (1-1/2") or 19mm(3/4")3m (9.5ft)







SHIPPING INFORMATION

Unit  Weight


Selling Unit Size (L x W x H)


Selling Unit Weight


Master Carton Size (L x W x H)


Master Carton Qty


Master Carton Weight


Master Carton Volume
