Voltage：12V
Power：1W
Waterproof Grade：IP67
Visibility：2NM

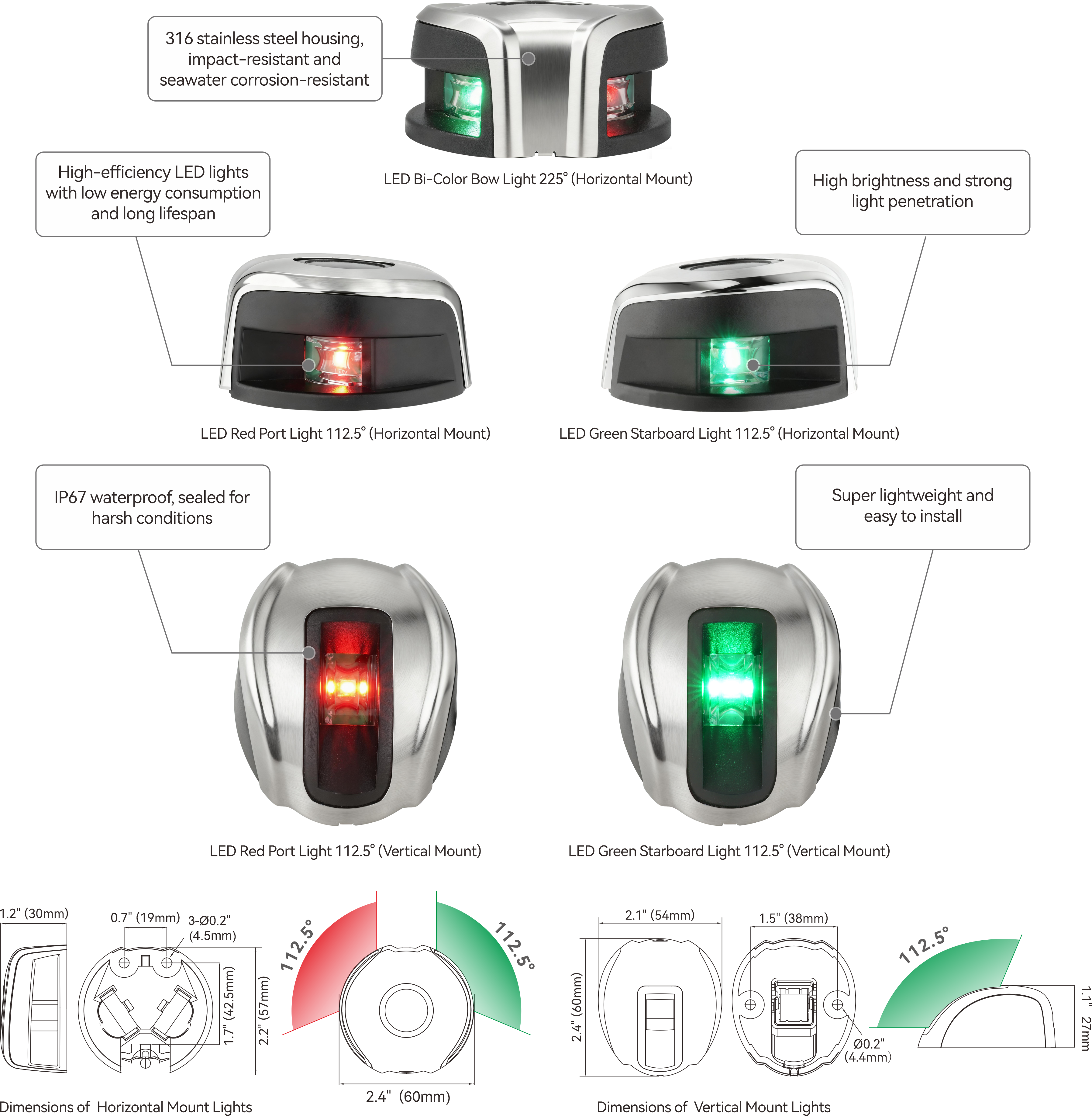

The SEAFLO boat navigation lights offer a visibility range of 2 nautical miles for power boats measuring up to 65.6 feet (20 meters). The incorporation of advanced LED technology guarantees heightened visibility along with superior heat dispersion. Crafted with a robust stainless steel housing and an engineering plastic base, these lights are both lightweight and durable. Their IP67 waterproof rating ensures reliability, even in harsh weather conditions such as high winds and heavy rain.
MORE FEATURES & BENEFITS
- IP67 waterproof design, weatherproof and completely sealed, safe and reliable to use;
- Visible distance 2 nautical miles;
- 316 stainless steel housing, impact resistant and seawater corrosion resistant;
- For boats up to 65.6 ft.(20m);
- LED lighting element stays cool to the touch, low energy consumption, and long lifespan;
- High brightness, strong penetration,which greatly improves the safety of navigation;
- Simple installation, no need complicated tools, convenient for using;
- Super lightweight and convenient;
STANDARD CONFIGURATIONS
Product |  |  |

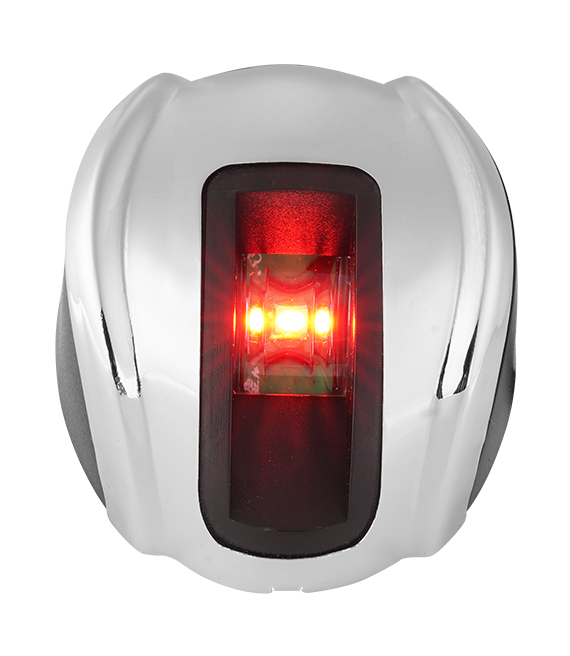

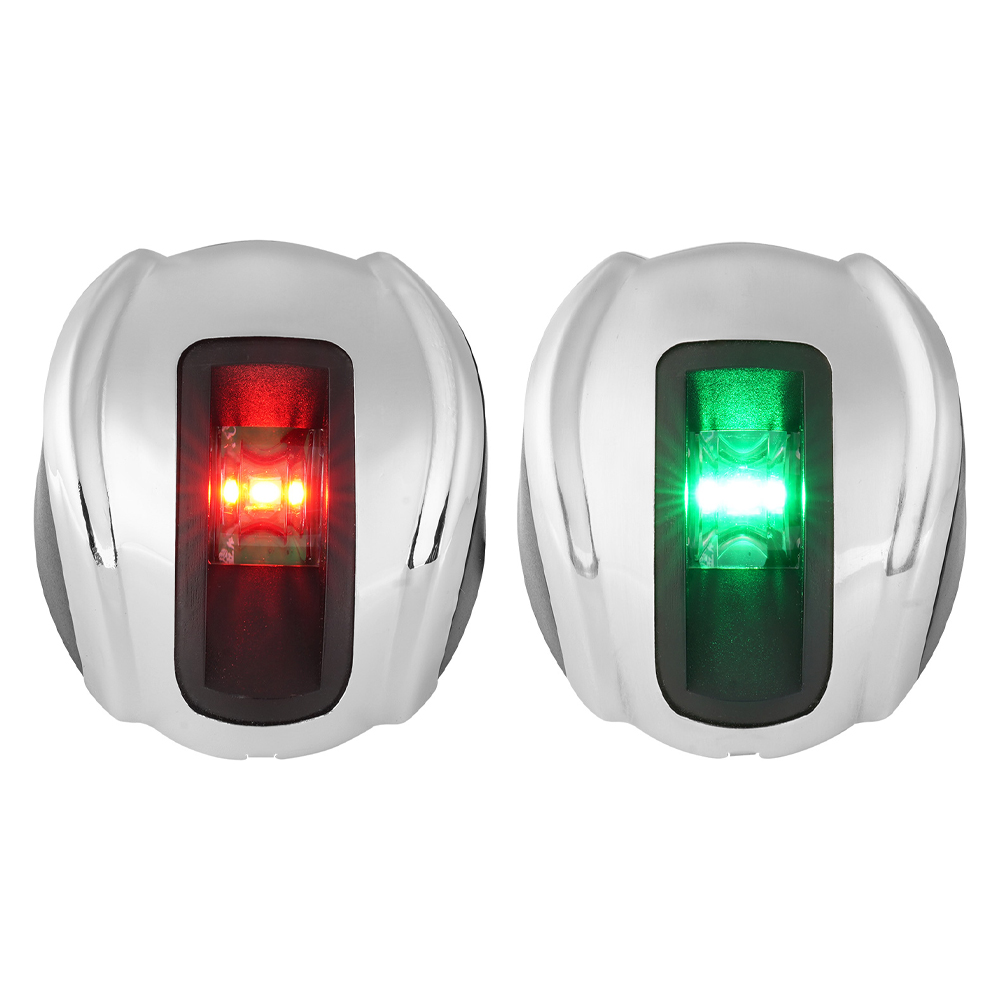

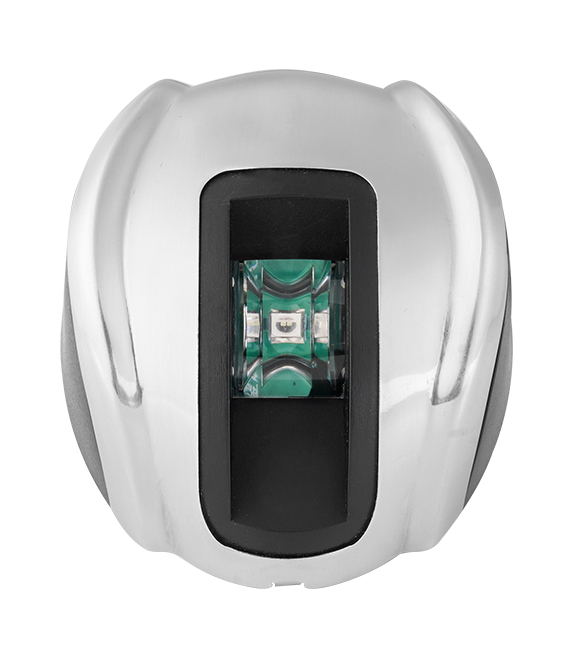

Name | Vertical Mount Lights-Starboard light | Vertical Mount Lights-Port light |
Model | SFNL021-RS-01 | SFNL021-LS-01 |
Voltage & Power | 12VDC 1W | |
Visibility | 2NM | |
Protection class | IP67 | |
Level arc | 112.5° | 112.5° |
Color | Green | Red |
Function | for hull starboard side signal light | for hull port side signal light |
Material | 316 Stainless Steel + Engineering plastic | |
Size | 60*54*27mm | |
Product |
|
|  |

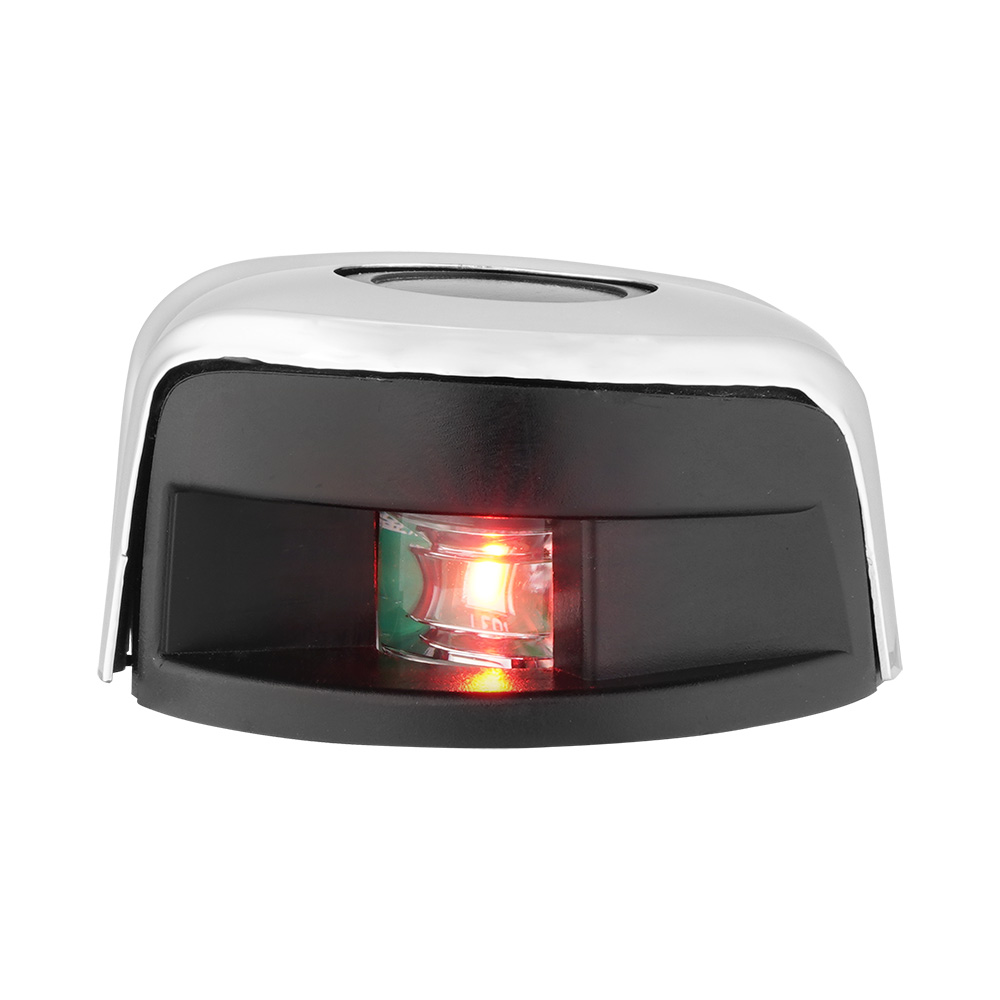

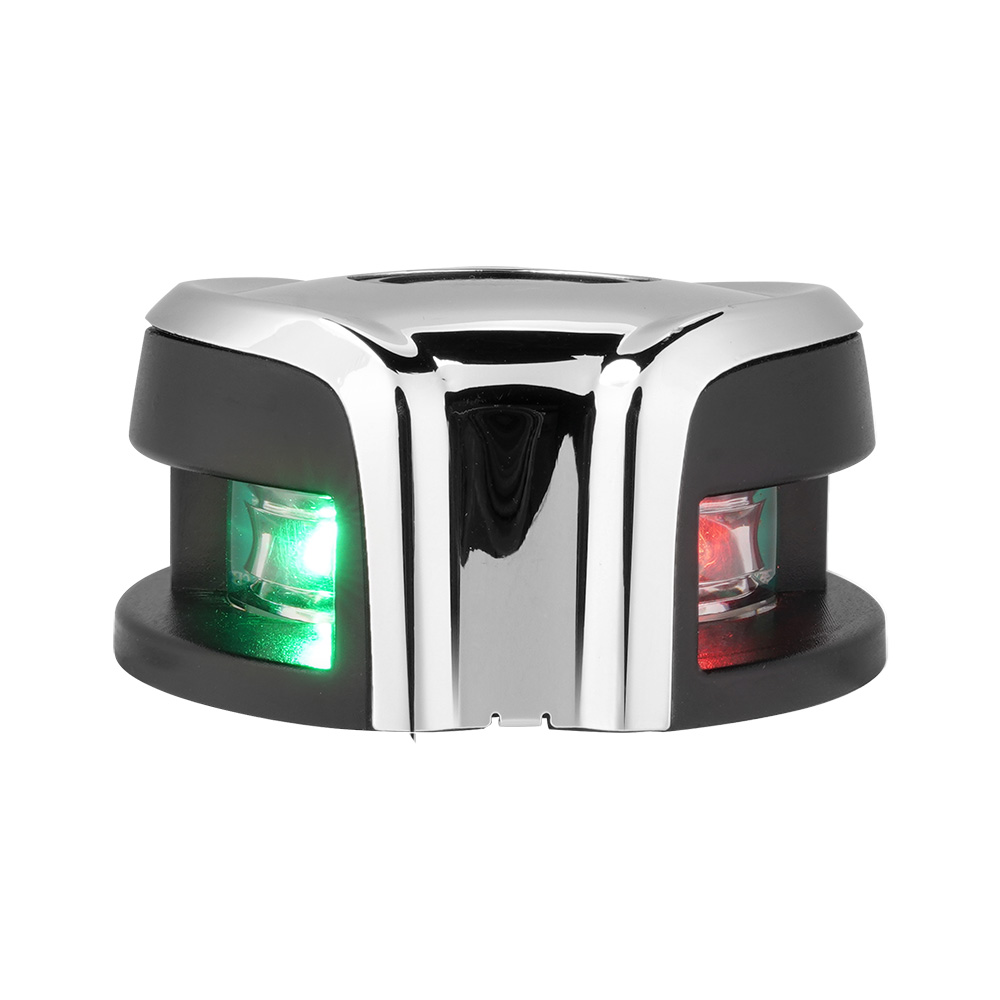

Name | Horizontal Mount Lights-Starboard light | Horizontal Mount Lights-Port light | Horizontal Mount Lights-Bi-color light |
Model | SFNL031-RS-01 | SFNL031-LS-01 | SFNL031-BS-01 |
Voltage & Power | 12VDC 1W | ||
Visibility | 2NM | ||
Protection class | IP67 | ||
Level arc | 112.5° | 112.5° | 225° |
Color | Green | Red | Red&Green |
Function | for hull starboard side signal light | for hull port side signal light | for use on the front end of boats, replaces port and starboard lights |
Material | 316 Stainless Steel + Engineering plastic | ||
Size | 57*60*30mm | ||
DIMENSIONS
Horizontal Mounting Size Diagram

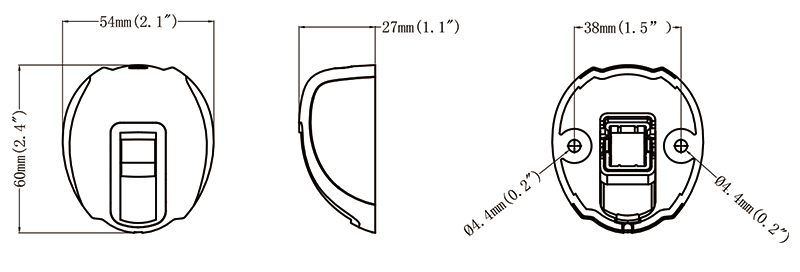

Vertical Mounting Size Diagram
